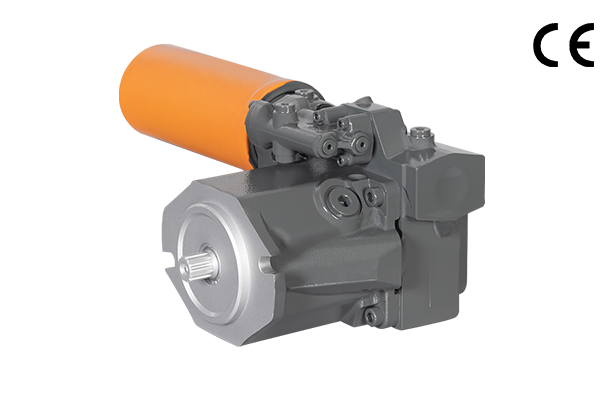

601100
Specifications：45/63/85cc/rev
Rated pressure：210bar
Peak pressure：250bar
Variable pump in swash-plate design for open circuit.
High continuous pressure.
Exceptional self-priming capability.
Available with American (SAE) and Japanese (JIS) mounting flanges and shafts.
Excellent reliability and long life.
High power to weight ratio.
Variety of control options.
Optional through drive.
Quick control response.
Low pressure pulsation and low noise.
| Size | 45 | 63 | 85 | |
| Displacement (cc/rev) | 45 | 63 | 85 | |
| Pressure | Rated pressure(bar) | 210 | 210 | 210 |
| Peak pressure(bar) | 250 | 250 | 250 | |
| Rotation speed r/min | Max for self-priming (bar) | 2900 | 2700 | 2700 |
| Weight (Kg) | 15 | 30 | - | |
| Quantity of oil to fill pump case (L) | 0.3 | 0.6 | 0.8 | |
| Temperature Range(℃) | -20~95 | |||
| Temperature Range(mm2/s) | 10-1000 (The best use of viscosity range 16~36 mm2/s) | |||
