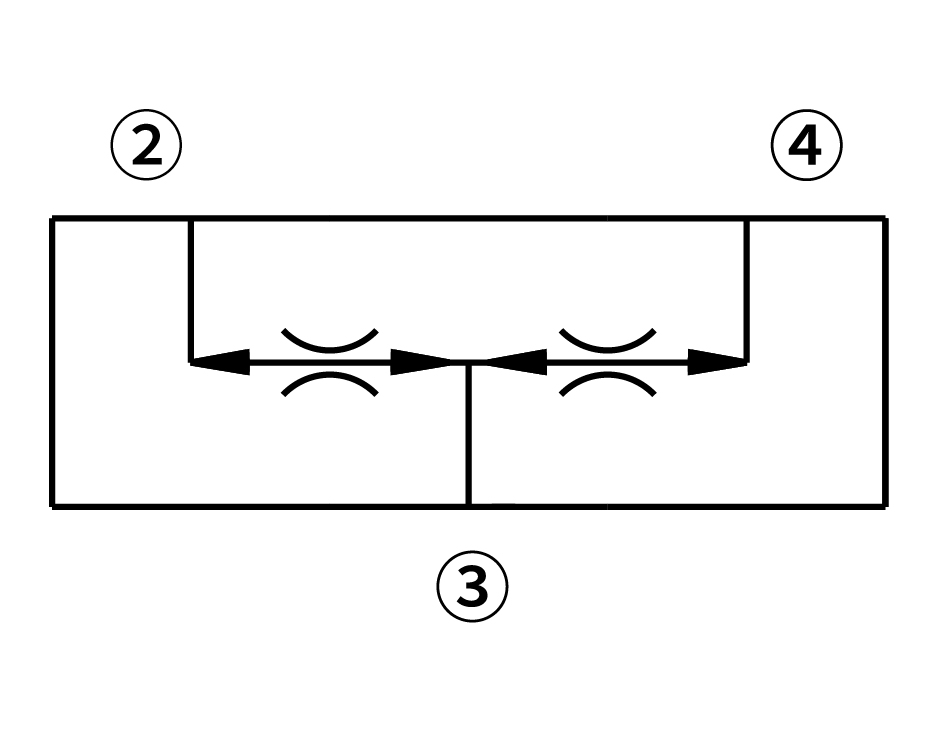

A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner.

Max. pressure：350 bar

Peak flow：120 L/min

Cavity：VC12-4

****

Open all | Close all

• Hardened components for increased durability
• Quiet, smooth response
• Industry standard orifice

Peak pressure	350 barr (5075 psi)
Peak flow	120 L/min (31 gpm)
Dividing ratio	See ordering code
Torque	81~95 Nm
Cavity	VC12-4
Fluid	Mineral-based or synthetics with lubricating properties
Fluid temperature range ℃	-54 to 107 ℃ (Polyurethane seals）
	-40 to 100 ℃ (Buna N seals)
	-26 to 204 ℃ (Fluorocarbon seals)
Viscosity range	7.4 to 420 mm²/s
Degree of fluid contamination	The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life
