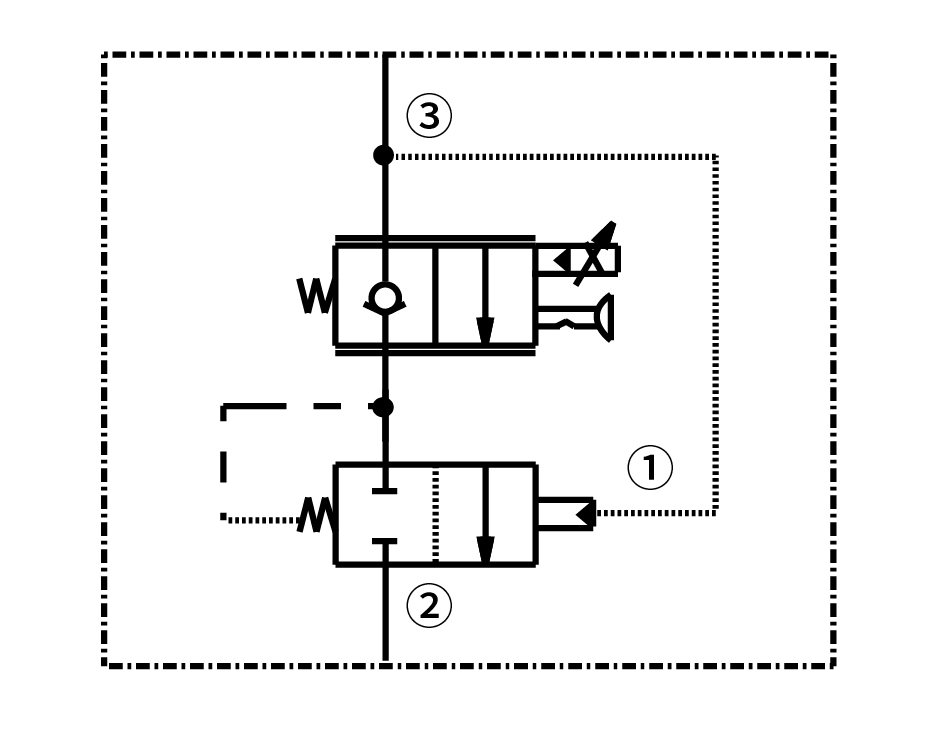

2-port, pressure-compensated, normally closed when de-energized.

Max. pressure：300 bar

Peak flow：17 L/min

Cavity：VC10-3D

****

Open all | Close all

• Excellent linearity and hysteresis characteristics

• High efficiency wet armature structure

Max. pressure	300 bar (4350 psi)
Peak flow	17 L/min (4.47 gpm)
Internal leakage	≤ 0.3 mL/min @ 207 bar
Maximum control current	650 mA (24V)
Flutter frequency	200 Hz
Coil duty rating	Standard coils and E-Coils: Continuous up to 115% of nominal voltage
Cavity	VC10-3D (See technical reference)
Fluid	Mineral-based or synthetics with lubricating properties
Viscosity range	7.4 to 420 mm²/s
Temperature range	-40 to 100 ℃ (Buna N seals)
	-54 to 107 ℃ (Polyurethane seals）
	-26 to 204 ℃ (Fluorocarbon seals)
Degree of fluid contamination	The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life?
