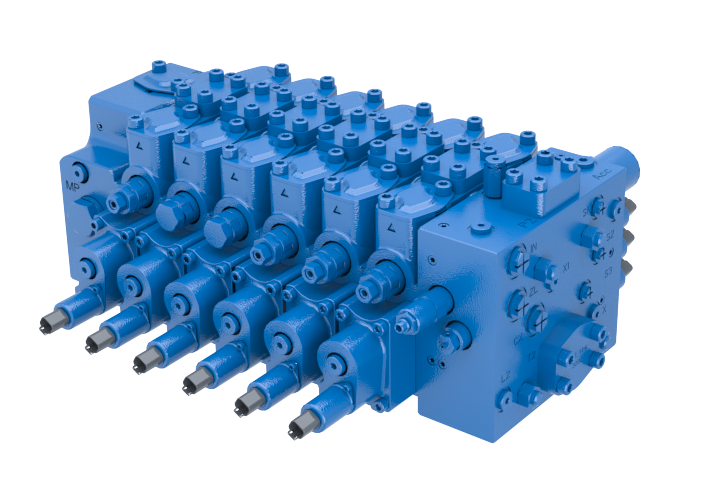

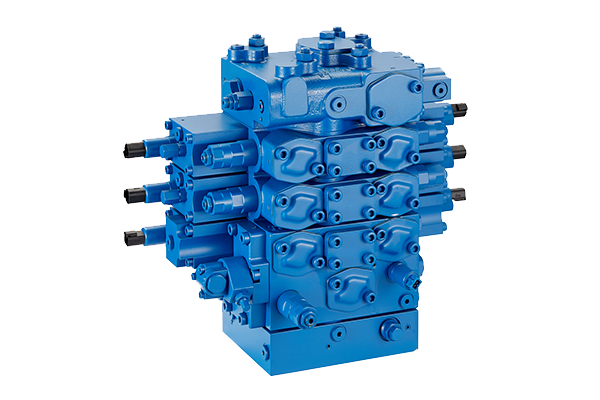

601100
Specifications: 25/32
Rated Pressure: 350 bar
Rated Flow: 300~500 L/min
High efficiency
Less volume, lighter weight
Precise controllability
Less pressure drop, low fuel consumption
Perfect flow distribution
| General | ||||
| Size | 25 | 32 | ||
| Nominal Size | 28 | 32 | ||
| Structure | Sandwich plate design | |||
| Connection type | BSP Pipe thread (JIS B2351-1) | |||
| Mass (kg) | Inlet section | 21 | 35.04 | |
| INTL. CONN.-H | 18.1 | 32.26 | ||
| INTL. CONN.-E | 19 | 32.66 | ||
| Hydraulic | ||||
| Size | 25 | 32 | ||
| Rated flow | Q (L/min) | 300 | 500 | |
| Max. operating pressure at port | P /LS (bar) | 320 | 320 | |
| A/B (bar) | 350 | 350 | ||
| T (bar) | 30 | 30 | ||
| TS (bar） | Less than 2 | Less than 2 | ||
| Pilot pressure | a/b (bar) | Less than 35 | Less than 35 | |
| Pilot control pressure range | 8 to 22 bar 8 to 25 bar | |||
