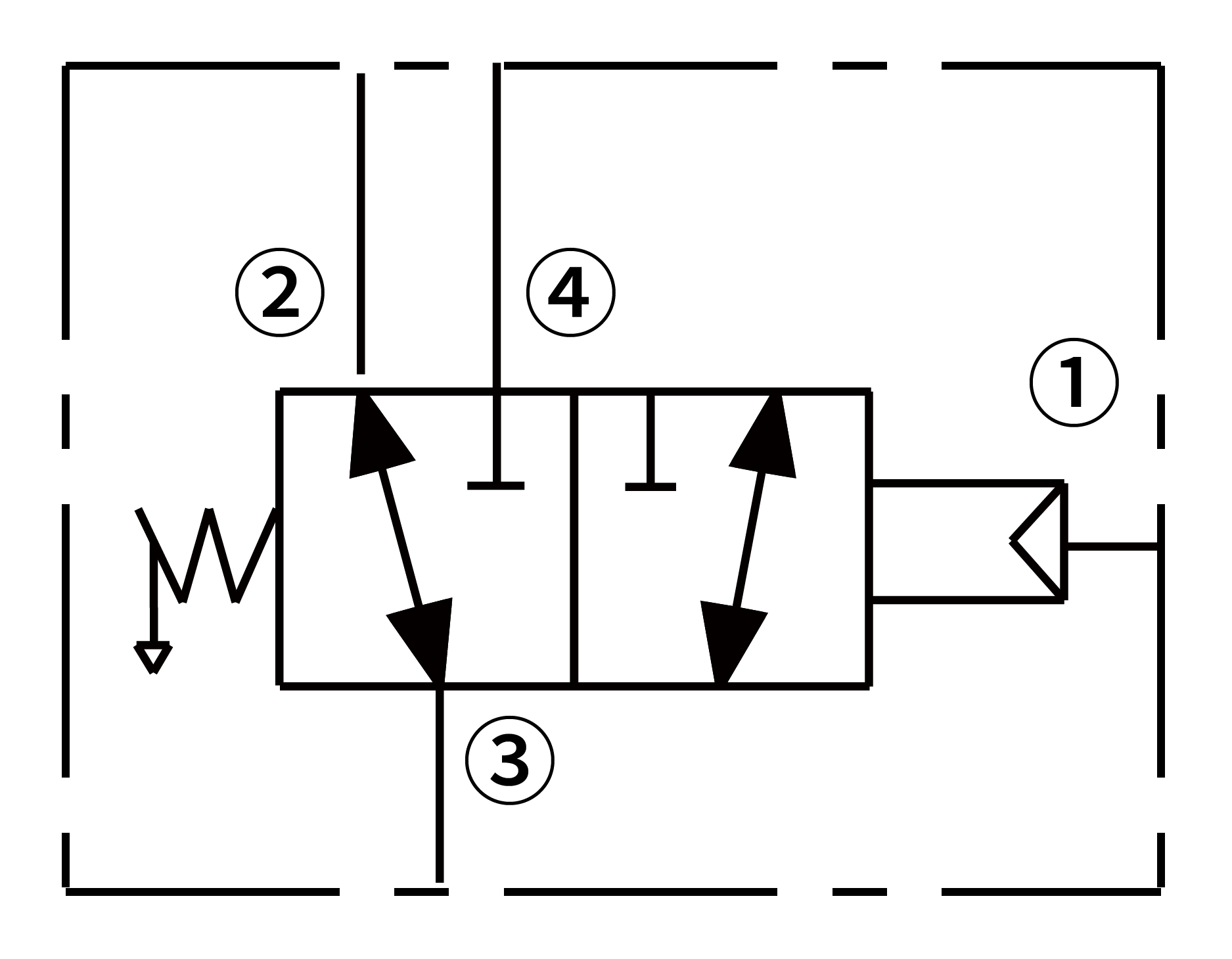

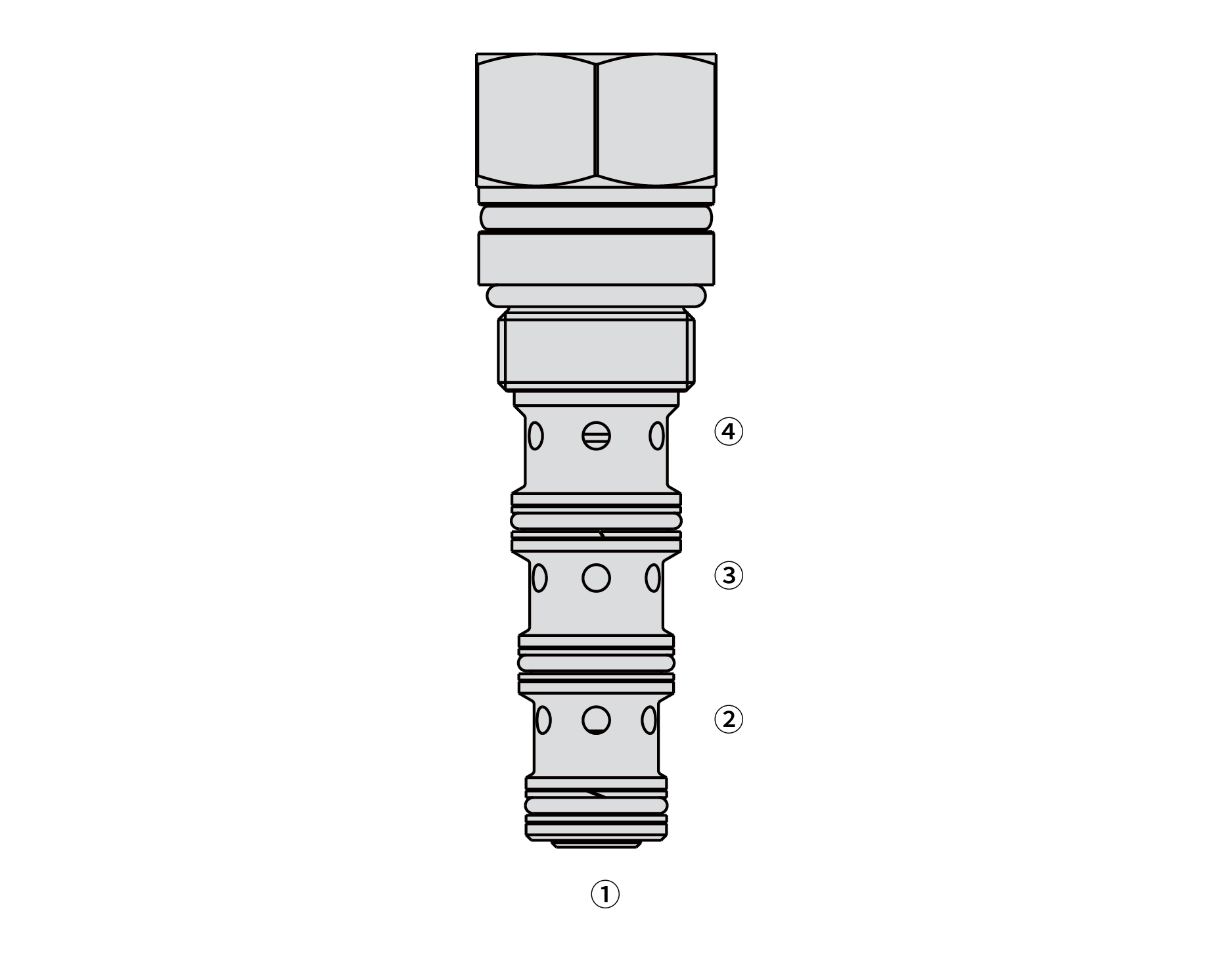

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for 3-way circuits requiring remote pilot actuation.

Rated pressure：350 bar

Peak flow：50 L/min

Cavity：VC10-4

****

Open all | Close all

Rated pressure	350 bar (5000 psi)
Peak flow	50 L/min (13 gpm)
Internal leakage	≤ 50 mL/min @ 207bar
Cavity	VC10-4 (See technical reference)
Fluid	Mineral-based or synthetics with lubricating properties
Viscosity range	7.4 to 420 mm²/s
Temperature range	-54 to 107 ℃ (Polyurethane seals）
	-26 to 204 ℃ (Fluorocarbon seals)
	-40 to 100 ℃ (Buna N seals)
Degree of fluid contamination	The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life
