50SD58-35 TYPE Solenoid Directional Valve

Series of pictures

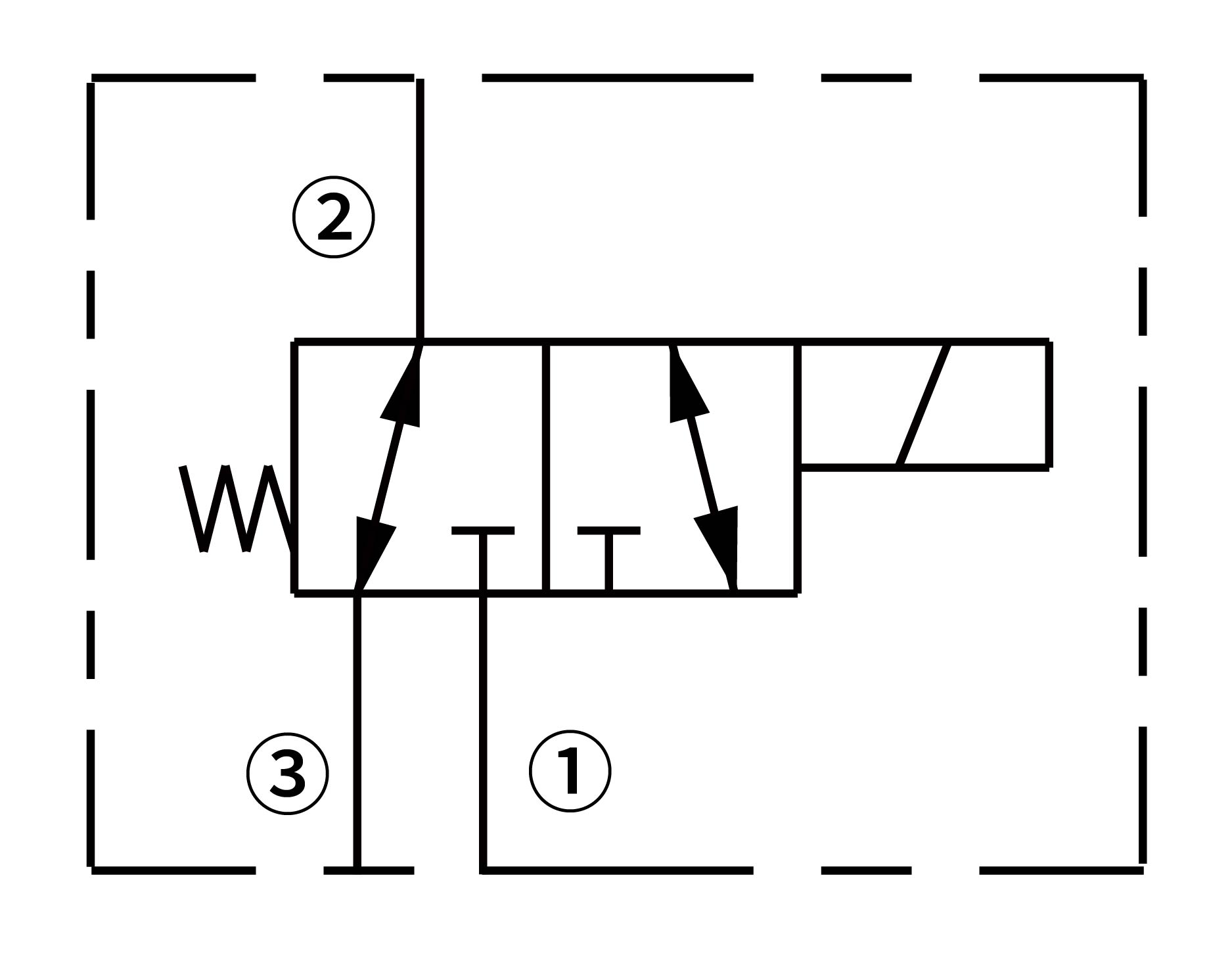

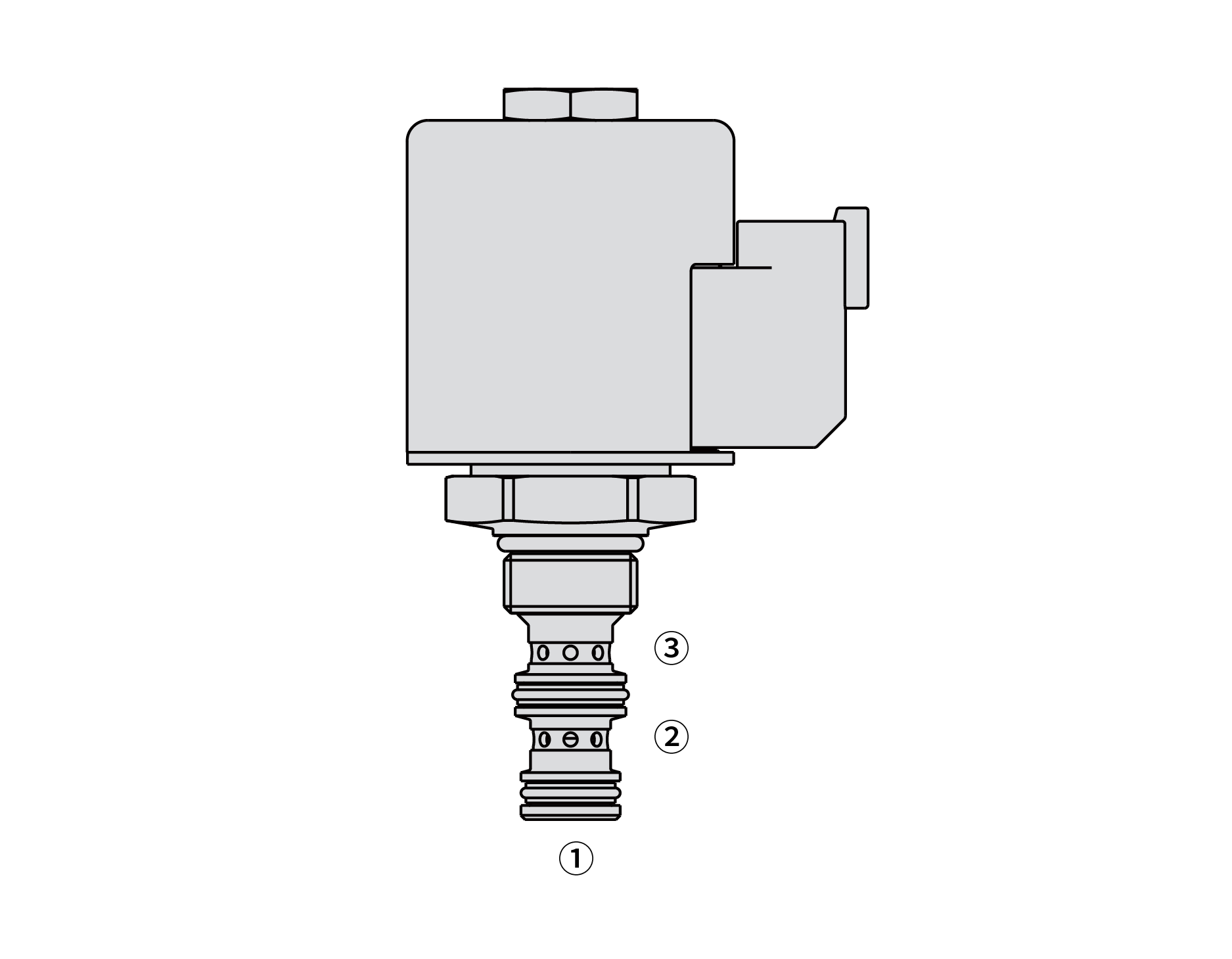

A solenoid-operated, 3-way,2-position,direct-acting,spool-type,screw-in hydraulic directional valve designed for high pressure operation up to 345 bar(5000psi).

Rated pressure (bar / psi): 345 / 5000

Peak flow (L/min / gpm) : 11.4 / 3 (See performance chart)

Cavity: VC08-3

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get CAD

Open All | Close All

Serial Advantage

Continuous-duty rated coil
Cartridges are voltage interchangeable
Optional waterproof E-Coils rated up to IP69K
Efficient wet-armature construction
Hardened parts for long life and low leakage

Technical Specification

Rated pressure		345 bar (5000 psi)
Peak flow		See performance chart
Internal leakage		≤ 140 mL/min @345 bar
Coil duty rating		Continuous from 85% to 115% of nominal voltage
Initial coil current draw at 20℃	E-Coil	1.7 A at 12VDC; 0.85 A at 24VDC
	D-Coil	1.67 A at 12VDC; 0.83 A at 83VDC
Minimum pull-in voltage		85% of nominal at 207 bar
Cavity		VC08-3 (See technical reference)
Fluid		Mineral-based or synthetics with lubricating properties
Viscosity range		7.4 to 420 mm²/s
Temperature range		-40 to 100 ℃ (Buna N seals)
		-54 to 107 ℃ (Polyurethane seals）
		-26 to 204 ℃ (Fluorocarbon seals)
Degree of fluid contamination		The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life
