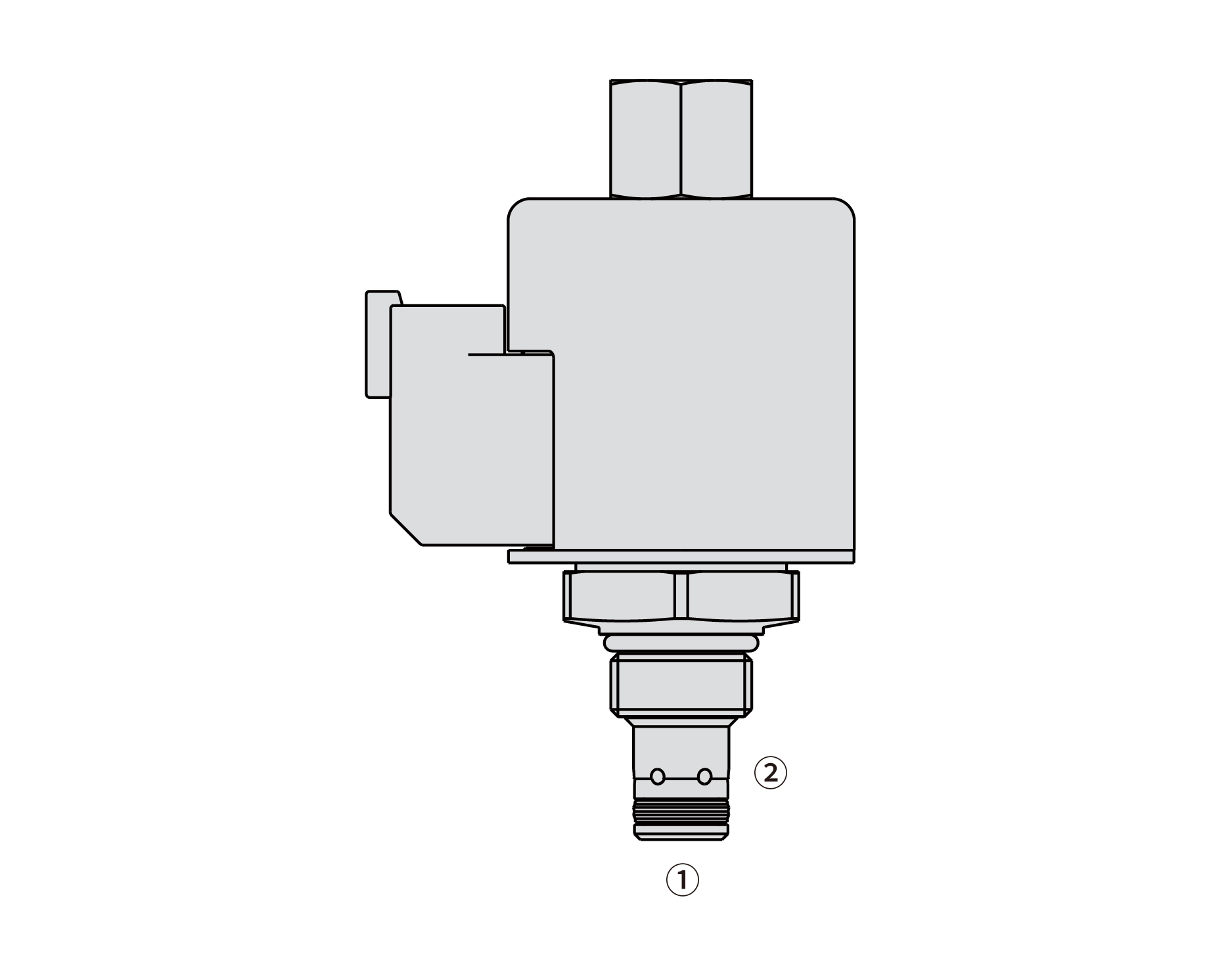

601100
Rated pressure：207 bar
Peak flow：18.9 L/min
Cavity：VC08-2
Continuous-duty rated coil
Cartridges are voltage interchangeable
Optional waterproof E-Coils rated up to IP69K
Efficient wet-armature construction
Industry common cavity
Hardened parts for long life
| Rated pressure | 207 bar (3000 psi) | |
| Peak flow | 18.9 L/min (5 gpm) | |
| Internal leakage | ≤ 0.25 mL/min (5 drops/min) @207 bar | |
| Coil duty rating | Continuous from 85% to 115% of nominal voltage | |
| Initial coil current draw at 20℃ | E-Coil | 1.7 A at 12VDC; 0.85 A at 24VDC |
| D-Coil | 1.67 A at 12VDC; 0.83 A at 24VDC | |
| Minimum pull-in voltage | 85% of nominal at 207 bar | |
| Cavity | VC08-2 (See technical reference) | |
| Fluid | Mineral-based or synthetics with lubricating properties | |
| Viscosity range | 7.4 to 420 mm2/s | |
| Temperature range | -40 to 100 ℃ (Buna N seals) | |
| -54 to 107 ℃ (Polyurethane seals) | ||
| -26 to 204 ℃ (Fluorocarbon seals) | ||
| Degree of fluid contamination | The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life | |
