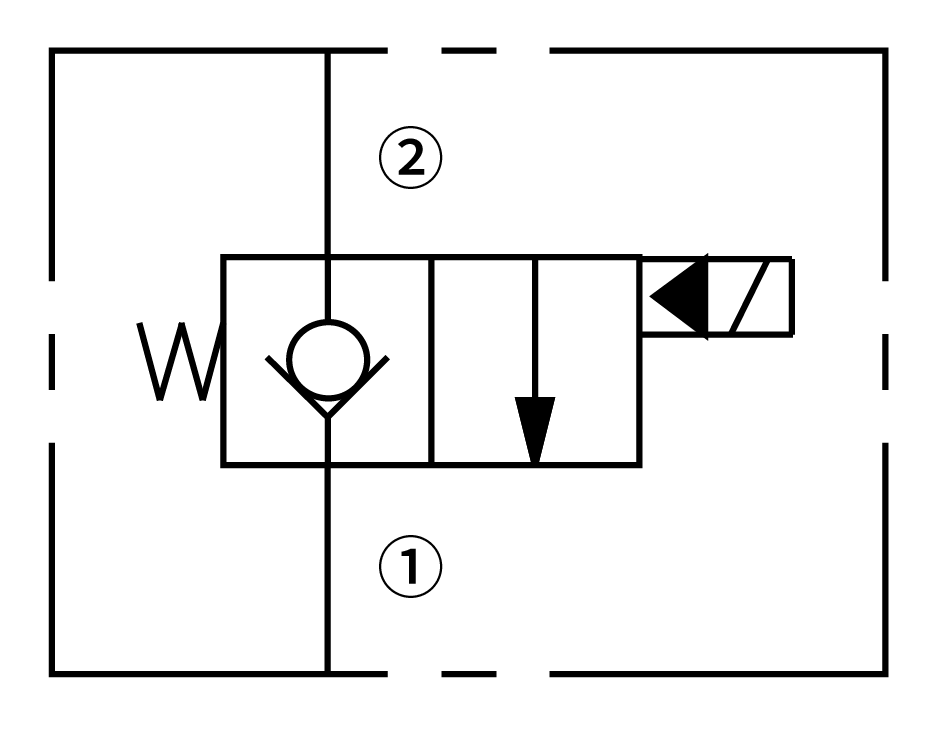

2-way, normally closed, piloted poppet-type, intended to act as a blocking or load-holding device for low flow circuits.

Rated pressure: 345 bar

Peak flow：19 L/min

Cavity：VC08-2

****

Open all | Close all

• Continuous-duty rated coil

• Cartridges are voltage interchangeable

• Optional waterproof E-Coils rated up to IP69K

• Industry common cavity

• Hardened parts for long life and low leakage

Rated pressure	345 bar (5000 psi)
Peak flow	See performance chart
Fluid	Mineral-based or synthetics with lubricating properties
Fluid temperature range ℃	-54 to 107 ℃ (Polyurethane seals）
	-40 to 100 ℃ (Buna N seals)
	-26 to 204 ℃ (Fluorocarbon seals)
Viscosity range	7.4 to 420 mm²/s
Degree of contamination	The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life
Internal Leakage	≤ 0.15 mL/min (3 drops/min) @ 345 bar
Cavity	VC08-2
Coil Duty Rating	Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20℃	E-Coil	1.4A at 12VDC; 0.7A at 24VDC
	D-Coil	1.2A at 12VDC; 0.6A at 24VDC
Minimum pull-in voltage	85% of nominal at 345 bar
