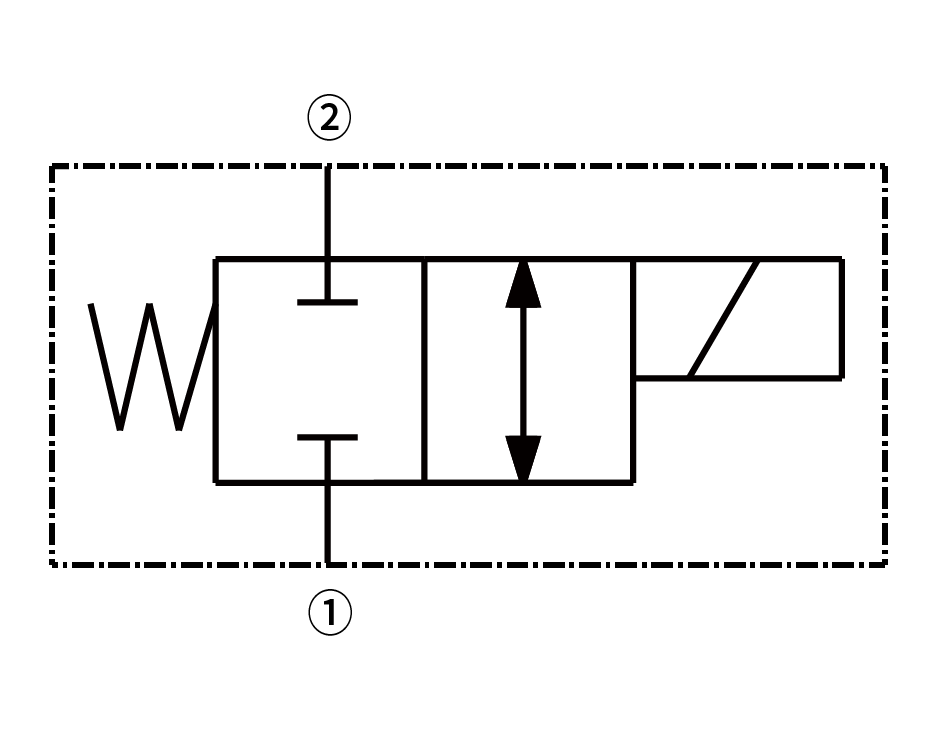

2-way, normally closed, direct-acting, spool-type, designed to function as a bidirectional blocking valve.

Rated pressure：207 bar

Peak flow：60.6 L/min

Cavity：VC10-2

****

Open all | Close all

• Continuous-duty rated coil

• Both ports may be fully pressurized

• Efficient wet-armature construction

• Cartridges are voltage interchangeable

• Optional waterproof E-Coils rated up to IP69K

• Industry common cavity

• Hardened parts for long life and low leakage

Rated pressure		207 bar（3000 psi）
Peak flow		See performance chart
Internal leakage		≤ 82 mL/min @207 bar
Coil duty rating		Continuous from 85% to 115% of nominal voltage
Response time		First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized 30 msec.; De-energized 25 msec.
Initial coil current draw at 20℃	E-Coil	1.7 A at 12VDC; 0.85 A at 24VDC
	D-Coil	1.67 A at 12VDC; 0.83 A at 24VDC
Minimum pull-in voltage		85% of nominal at 207 bar
Cavity		VC10-2 (See technical reference)
Fluid		Mineral-based or synthetics with lubricating properties
Viscosity range		7.4 to 420 mm²/s
Temperature range		-40 to 100 ℃（Buna N seals）
		-54 to 107 ℃（Polyurethane seals）
		-26 to 204 ℃（Fluorocarbon seals）
Degree of fluid contamination		The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life
