601100
Rated pressure (bar / psi) : 380 / 5500
Rated flow (L/min / gpm) : 90 / 24
Cavity: T-2A

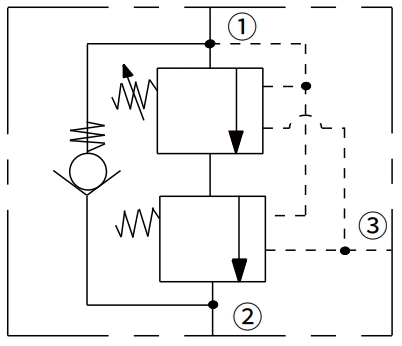

Two-stage counterbalance type
Hardened parts for long life
Quiet, modulated response
Industry common cavity
| Rated pressure | 380 bar (5500 psi) |
| Rated flow | 90 L/min(24 gpm) |
| Pilot ratio | 5.6:1 (first stage pilot ratio); 0.7:1 (second stage pilot ratio) |
| Internal leakage | ≤ 5 drops/min @ 80% of pressure setting |
| Cavity | T-2A (See technical reference) |
| Fluid | Mineral-based or synthetics with lubricating properties |
| Viscosity range | 7.4 to 420 mm2/s |
| Temperature range | -40 to 100 ℃ (Buna N seals) |
| Degree of fluid contamination | The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life |
