601100
Specification: 23~135 cc/rev
Nominal pressure: 350~420 bar
Maximumpressure: 380~450bar

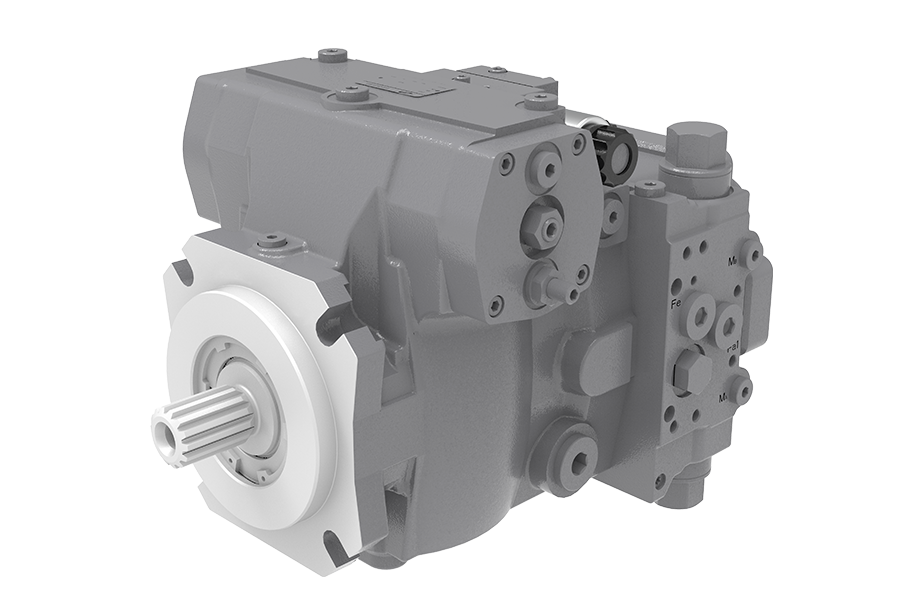

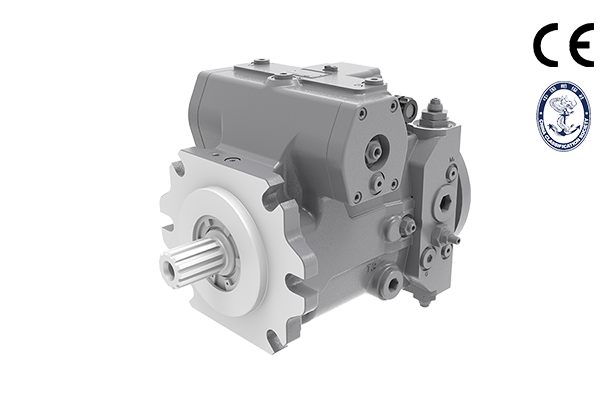

Swashplate axial piston pump for closed hydraulic circuits
Smooth directional change of hydraulic fluid flow when swashplate passes neutral position
Two pressure relief valves installed on high-pressure side to prevent overload
Built-in gear pump functions as both make-up oil pump and control pump
Maximum make-up pressure limited by integrated low-pressure relief valve
Newly designed rotating components and bearings enhance load capacity and rated speed
Optimized housing design reduces vibration and noise
Multiple control options available to meet diverse industry application requirements
Various port connection configurations optimize piping connections
| Size | 23 | 32 | 47 | 60 | 75 | 100 | 135 | |
| Displacement (cc/rev) | 23 | 32 | 47 | 60 | 75.6 | 100 | 135 | |
| Speed | Rated (rpm) | 3800 | 3500 | 3300 | 3600 | 3300 | 3000 | 2850 |
| Max. (rpm) | 4000 | 3800 | 3550 | 3900 | 3600 | 3300 | 3250 | |
| Min. (rpm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Flow | At nnom and Vgmax (L/min) | 87.4 | 112 | 155.1 | 216 | 249.5 | 300 | 384.8 |
| Pressure | Rated (bar) | 350 | 420 | 420 | 420 | 420 | 420 | 420 |
| Peak (bar) | 380 | 450 | 450 | 450 | 450 | 450 | 450 | |
| Minimum low loop pressure (bar) (Above charge | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| pump) | ||||||||
| Power | At Δp=Pnom (kW) | 51 | 78.4 | 108.6 | 151.2 | 174.7 | 210 | 269.4 |
| Torque | At Δp=Pnom (N·m) | 128 | 214 | 314 | 401 | 501 | 668.5 | 902 |
| At Δp=100 bar (N·m) | 36.6 | 51 | 75 | 95.5 | 119.4 | 159 | 214.9 | |
| Charge pump displacement (cc/rev) | 6.1 | 8.6 | 8.6/11.6 | 11.6 | 17/21/27 | 28.3 | ||
| Charge pressure (relative to Charge | Max. pressure (bar) | 40 | 40 | 35 | 40 | 40 | 40 | 40 |
| pump) | ||||||||
| Min. control pressure (bar) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Shaft seal pressure resistance | Rated (bar) | 1.5 | 5 | 3 | 3 | 5 | 5 | 5 |
| Peak (bar)(Short- time peak pressure) | 2.5 | 10 | 6 | 6 | 10 | 10 | 10 | |
| Suction pressure ( Absolute pressure ) | Rated (bar) Oil viscosity ≤ 30mm2/s | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. (bar) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Oil viscosity (mm2/s) | 10~1000, Best range: 16~36 | |||||||
| Oil temperature (℃ ) | -25~110* | |||||||
| Oil cleanliness | ISO 4406 Class 20/18/15 or higher | |||||||
| Rotor set moment of inertia (kgm2) | 0.0015 | 0.0032 | 0.0043 | 0.0069 | 0.0107 | 0.0164 | 0.0249 | |
| Weight ( w/o auxiliary flange ) (Kg) | 24 | 30 | 33 | 38 | 58 | 62 | 82 | |
