Home Products Hydraulic Pumps Pump (Open-loop) Type F30D Fixed displacement axial piston pump

Set the following parameters

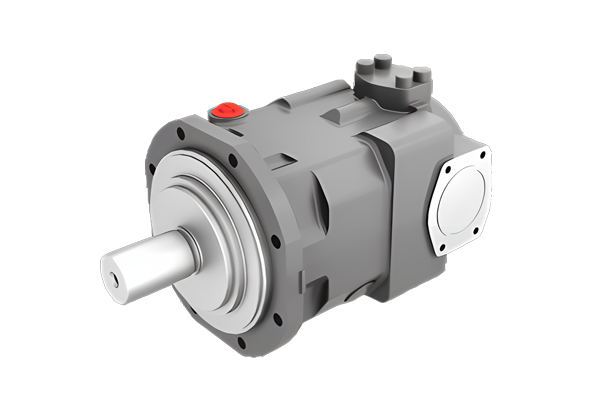

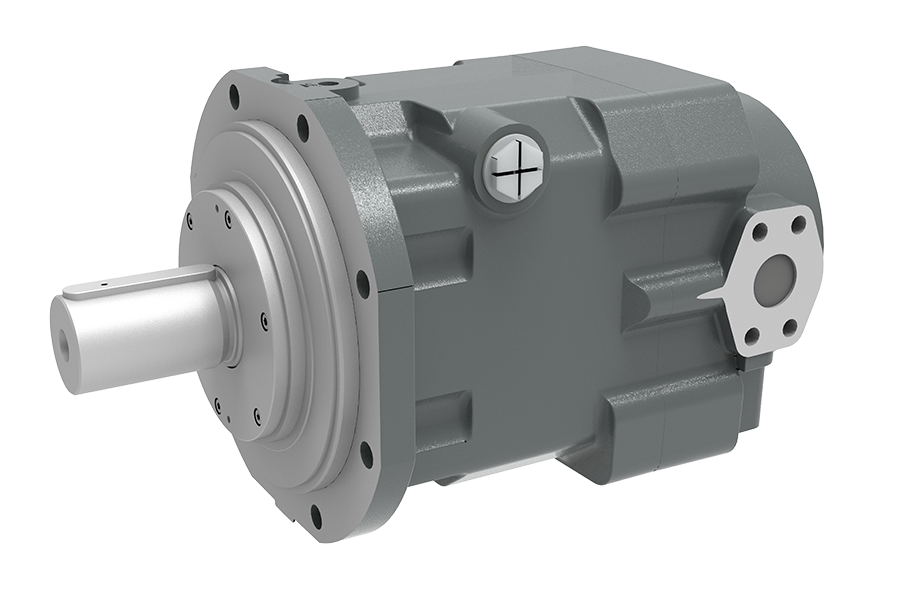

Type F30D Fixed displacement axial piston pump

Series of pictures

The axial piston fixed displacement pumps of the type F30 of D offer extremely high function safety. Its remarkably low noise levels, the high pressure rating, optimined power-to-weight-ratio make it possible to employ it for most industrial.

Specification: 520 cc/rev

Rated pressure: 420 bar

Peak pressure: 450 bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get 3D/2D drawings

Open All | Close All

Serial Advantage

・Low-noise emissions

・Full torque available at the second pump in tandem pump applications

Technical Specification

	Displacement (cm³/rev.)	Rated pressure (bar)	Minimum oil suction pressure (bar）	Shell pressure (bar)	Self suction speed (rpm )	Minimum speed (rpm)	Temperature range (℃ )	Weight (kg)
F30D - 520	520	420	0.85	1 \| instantaneous 2	1500	500	-25~100	252

Application Industry

Be mainly used in

Data Download

Datasheet
