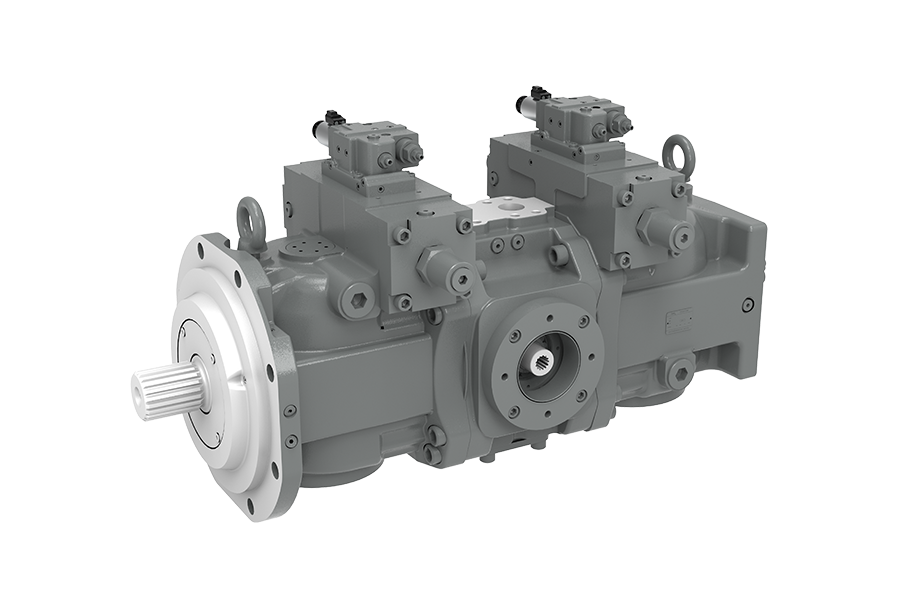

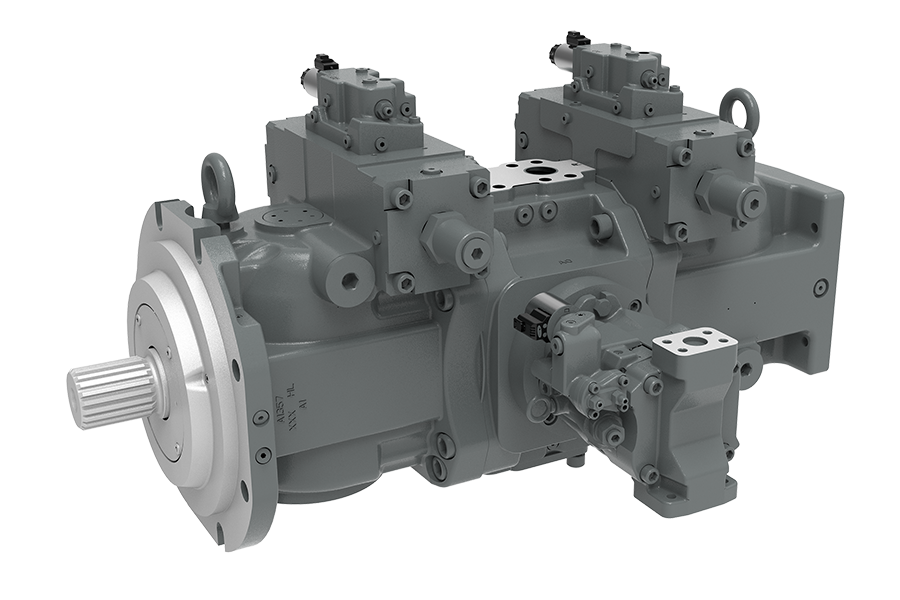

V93N variable axial piston double pump is designed for the high pressure open circuit. Increase displacement and have a wider range of applications.

Specifications：145×2/185×2/375×2 cc/rev

Rated pressure：380/380/420 bar

Peak pressure：420/420/460

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

Variable axial piston double pump design for the open circuit.
High working pressure (460 bar) and long lifetime.
Newly developed control valve with built-in high-precision filter to enhance anti pollution capability.
Horizontal piston design, short longitudinal length, large diameter variable piston, faster variable response speed.
More power output interfaces can be provided. The variable speed ratio of the power take-off improves the boosting effect and maximizes the performance of the auxiliary pump.
The booster impeller enhances the oil suction capacity of the entire pump and increases the operating speed of the pump. Simultaneously equipped with a booster impeller and a power take-off, it can save the cost of the main engine transfer case.

Size		V93N 145	V93N 185	V93N 375
Displacement(cc/rev)		145×2	185×2	375×2
Speed	Rated speed (rpm)	2200	2100	1600
	Maximum speed (rpm)	2500	2400	1700
Pressure	Rated pressure (bar)	380	380	420
	Maximum pressure (bar)	420	420	460
Maximum torque (N.m) @Vgmax and Δp=380bar		1754	2238	4538
Case volume (L)		3	4.6	13
Suction port pressure (abs bar)		0.8 ～ 2
Drain pressure (bar)		1
Max. drain pressure (bar)		3 *4
Mass (Kg)		170	180	400
Temperature range (℃ )		-20 ～ 95
Hydraulic fluid viscosity range (mm2/s)		10 ～ 1000 (optimum viscosity range 16 ～ 36)
