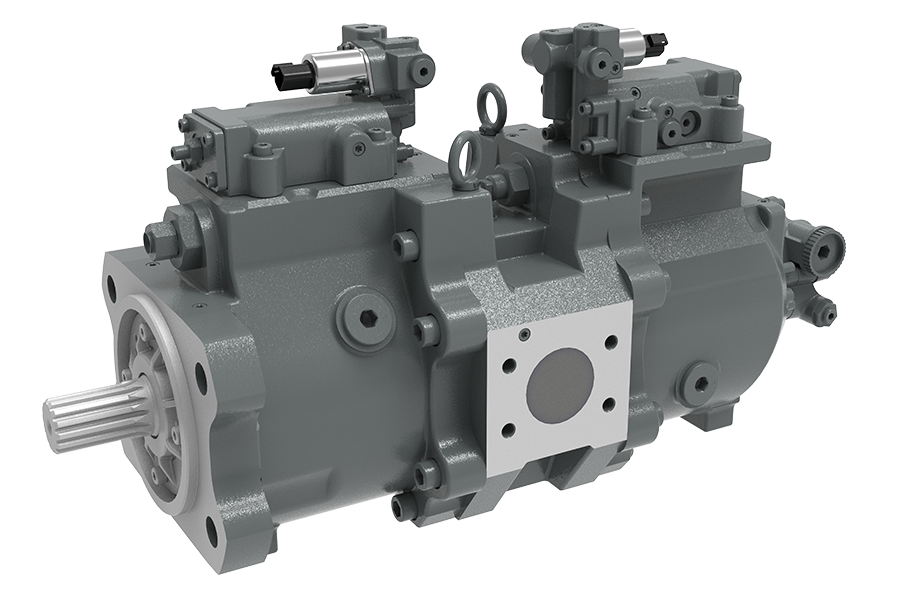

Home Products Hydraulic Pumps Pump (Open-circuit) V92N SERIES Axial Piston Tandem Variable Pumps

Please configure the following parameters

Mainly suitable for use in mobile machinery such as excavators, cranes, rotary drilling rigs, etc

Specifications: 120 cc/rev

Rated pressure: 350 bar

Peak pressure: 400 bar

****

Open all | Close all

• Variable displacement tandem pump for open circuit heavy-duty applications

• High efficiency, long lifespan, and high load capacity

• Advantages such as high load capacity, strong impact resistance, and wear resistance

• Multiple control methods can be combined, with optional angle sensors to achieve flow closed-loop control with higher precision

Size		120
Displacement(cc/rev)		120×2
Speed	Rated speed (rpm)	2350
	Maximum speed (rpm)	2700
Pressure	Rated pressure (bar)	350
	Maximum pressure (bar)	400
Maximum torque (N.m)		1337 （Δp=350bar）
Case volume (L)		2.7
Suction port pressure (abs bar)		0.8 ～ 2
Drain pressure (bar)		2
Max. drain pressure (bar)		5
Mass (Kg)		127
Temperature range (℃ )		-20 ～ 95
Hydraulic fluid viscosity range (mm²/s)		10 ～ 1000 (optimum viscosity range 16 ～ 36)
