Home Products Hydraulic Pumps Pump (Open-loop) V80M Variable displacement axial piston pump

Set the following parameters

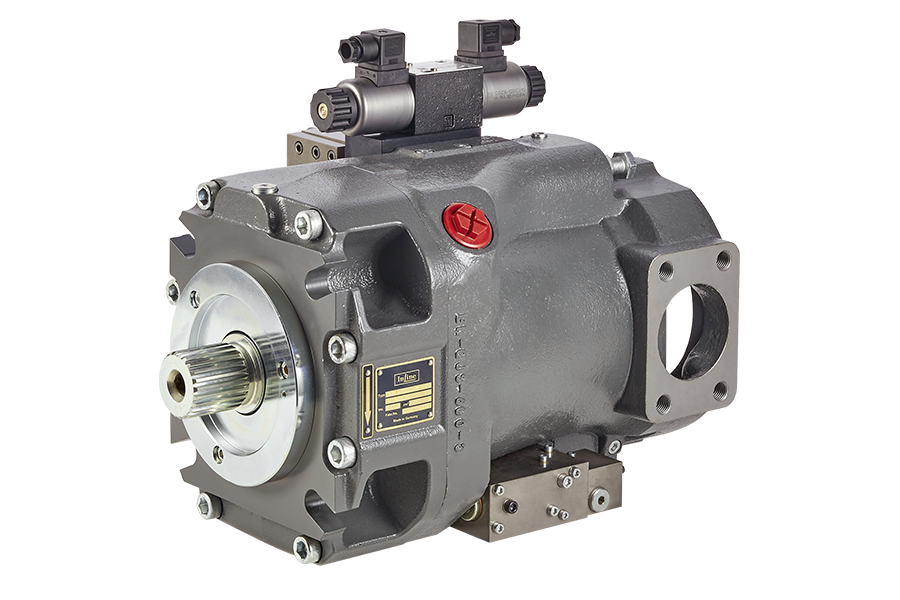

V80M Variable displacement axial piston pump

Series of pictures

The axial piston pump type V80M is designed for open circuits according to the swash plate principle. It is available with the option of a thru-shaft for operating additional hydraulic pumps in series.

Specifications：200
Rated pressure：400 bar
Peak pressure：450 bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get 3D/2D drawings

Open All | Close All

Serial Advantage

With charge pump, higher speed
High nominal pressure
Less installation space
Full torque available at the second pump in tandem pump applications

Technical Specification

Specifications	Displacement cc/rev	Pressure bar		Rotational speed r/min
Specifications	Displacement cc/rev	rated	peak	Self-priming is the highest	Highest pressurization
V80ML200	202	400	450	2150	2550

Application Industry

Be mainly used inWater Conservancy and Hydropower,Offshore equipment,Metal forming,Construction Machinery

Data Download

Datasheet
