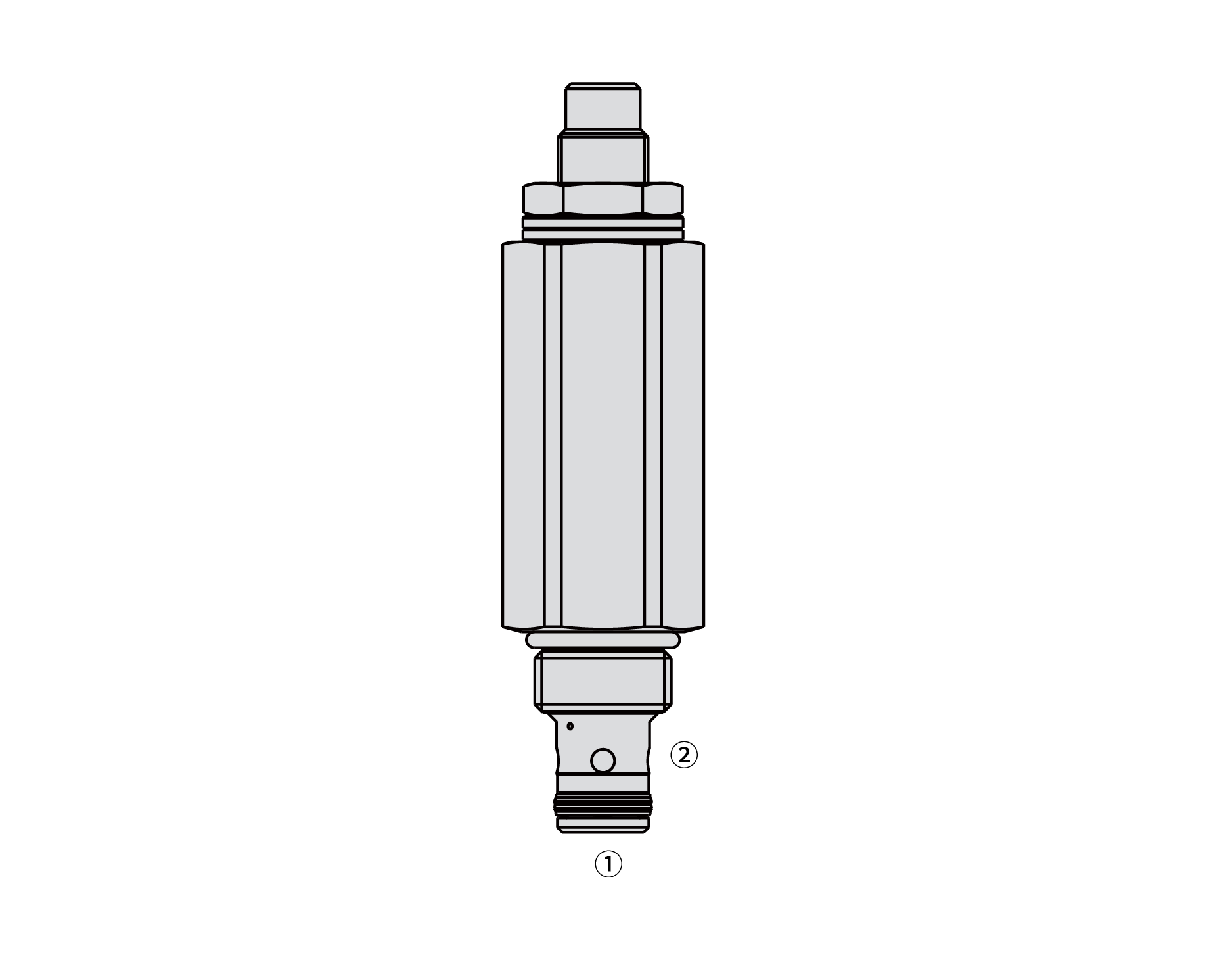

601100
Maximum pressure (bar / psi) : 276/ 4000
Peak flow (L/min / gpm) : 38 / 10 (See performance chart)
Cavity: VC08-2
Adjustments cannot be backed out of the valve
Rapid response to pressure changes
Hardened parts for long life
| Maximum pressure | 276 bar (4000 psi) |
| Peak flow | See performance chart |
| Internal leakage | ≤ 1 mL/min (20 d/min) @ 85% of setting pressure |
| Crack pressure defined | bar (psi) evident at 0.95 L/min attained |
| Cavity | VC08-2 (See technical reference) |
| Fluid | Mineral-based or synthetics with lubricating properties |
| Viscosity range | 7.4 to 420 mm2/s |
| Temperature range | -54 to 107 ℃ (Polyurethane seals） |
| -40 to 100 ℃ (Buna N seals) | |
| -26 to 204 ℃ (Fluorocarbon seals) | |
| Degree of fluid contamination | The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life |
