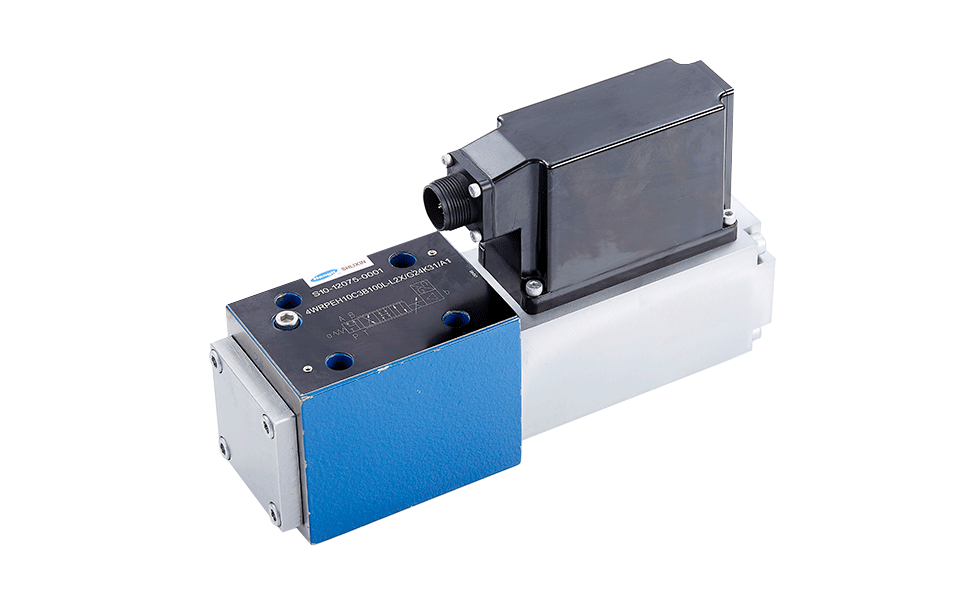

Direct action, servo performance, built-in spool feedback and integrated amplifier

Specification: 6/10

Pressure: up to 315 bar

Flow: up to 40/100 L/min

****

Open all | Close all

• Direct acting servo solenoid valve with control piston and valve sleeve, with servo performance

• Single drive, optional with power off safety function

Control electromagnet with built-in feedback and integrated amplifier board (OBE), factory preset

• Electrical connection 6P+PE signal input differential amplifier with interface, input optional A1: ±10V, or interface F1: 4... 20mA (Rsh =200Ω)

• Panel mounted with mounting surface in accordance with ISO 4401-03-02

General
Design			Spool valve, directly operated, with steel sleeve
Actuation			Proportional solenoid with position control, OBE
Connection type			Plate port, porting pattern (ISO 4401-05-04-0-05)
Installation position			Any
Ambient temperature range		℃	-20...+50
Weight		Kg	7.1
Maximum vibration resistance (test condition)			Max. 25 g, space vibration test in all directions (24h)
Hydraulic (measured with HLP 46, ϑoil =40℃ ±5℃ )
Hydraulic fluid			Hydraulic oil according to DIN 51524...535
Viscosity range	Recommended	mm²/s	20...100
	Max. admissible	mm²/s	10...800
Hydraulic fluid temperature range		℃	-20 to +70
Max. admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c)			Class 18/16/13
Rated flow (Δp = 35 bar per edge)		L/min	50	100
Maximum operating pressure		bar	Port P, A, B: 315
Maximum operating pressure		bar	Port T: 250
Leakage flow at 100 bar	Linear	cm³/min cm³/min	<1200	<1500
	Nonlinear		<600	<600
Static/Dynamic
Hysteresis		%	≤ 0.2
Actuating time for signal step 0 ... 100%		ms	25
Temperature drift			Zero shift < 1% at ΔT=40℃
Zero compensation			Ex factory ±1%
