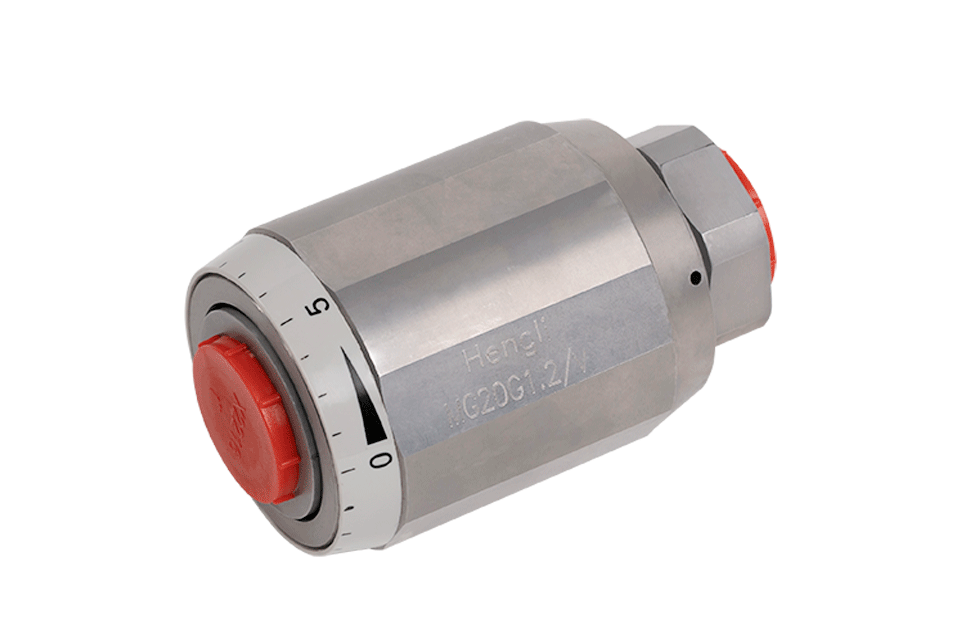

Valve types MG and Mk are throttle and throttle check valves with viscosity and pressure dependent.

Specifications: 6~30

Pressure: up to 315 bar

Flow: up to 400 L/min

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

Size		6	8	10	15	20	25	30
Weight	kg	0.3	0.4	0.7	1.3	2.2	3.6	4.5
Max.operating pressure	bar	315bar, 210bar (NPTF1 1/4, NPTF1 1/2)
Cracking pressure for type MK	bar	0.5
Max.flow-rate	L/min	400
Viscosity rangge	mm2/s	10 to 800
Fluid temperature range	℃	-30 ℃ to +80 ℃
Fluid		Mineral oil; Phosphate ester
Degree of contamination		Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406
