Set the following parameters

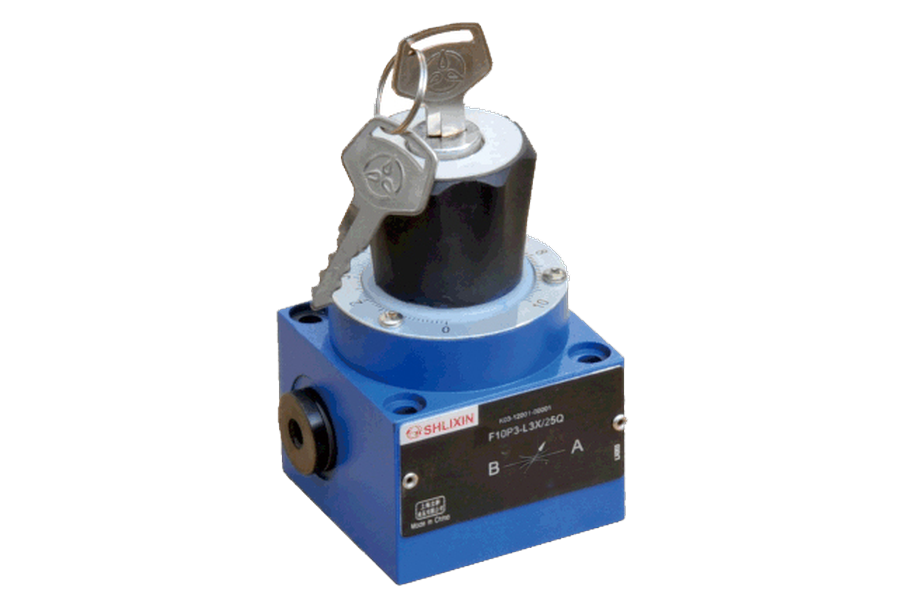

Flow control valves, type F are fine throttle valves with orifice .

Specifications: 5~10

Pressure: up to 210 bar

Flow: up to 80 L/min

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

Installation position			Optional
Weight	– Manifold mounting	kg	1
	– Theaded connection	kg	1.6
	– Sub-plate mounting	kg	1.8
Fluid			Mineral oil suitable for NBR and FKM seal
Fluid			Phosphate ester for FKM seal
Degree of contamination			Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406
Fluid temperature range		℃	-30 to +80 (NBR seal)
Fluid temperature range		℃	-20 to +80 (FKM seal)
Viscosity range		mm2/s	2.8 to 380
Max.operating pressure		bar	210
Max. flow-rate		L/min	80
Adjustment angle		°	300
Operating torque	– at 100 bar	Nm	1.1
Operating torque	– at 200 bar	Nm	1.8
