601100
Specification: 6
Pressure: up to 350 bar
Flow: up to 80 L/min

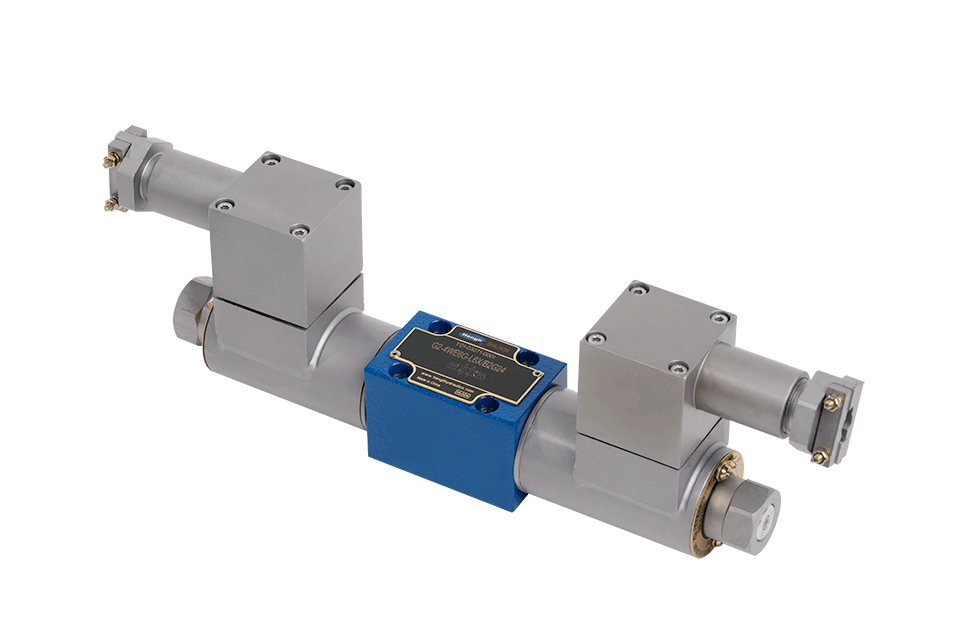

Directly operated type explosion protection directional valve is used as the standard type
DIN24 340 A type on the mounting surface ISO 4401 and CETOP-RP 121H
Wet-type DC explosion protection solenoid -90° rotatable explosion protection solenoid
Pressure-tight chamber does not need to be opened when coil is to be replaced
| Fixing position | Optional | ||
| Environment temperature range | ℃ | -30 to +50 (NBR seal) | |
| -20 to +50 (FKM seal) | |||
| Weight | Single solenoid | kg | 2.6 |
| Double solenoids | kg | 4.3 | |
| Max.operating pressure | Port P, A, B | bar | 350 |
| Port T | bar | 210 | |
| when the operating pressure exceeds the permission value, spool symbol A and B must make the port T for draining | |||
| Max. flow-rate | L/min | 80 | |
| Flow cross section (switching neutral position ) | VersionQ | mm2 | About 6% of nominal area |
| VersionW | mm2 | About 3% of nominal area | |
| Fluid | Mineral oil suitable for NBR and FKM seal | ||
| Phosphate ester for FKM seal | |||
| Fluid temperature range | ℃ | -30 to +80 (NBR seal) | |
| -20 to +80 (FKM seal) | |||
| Viscosity range | mm2/s | 2.8 to 500 | |
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406 | ||
