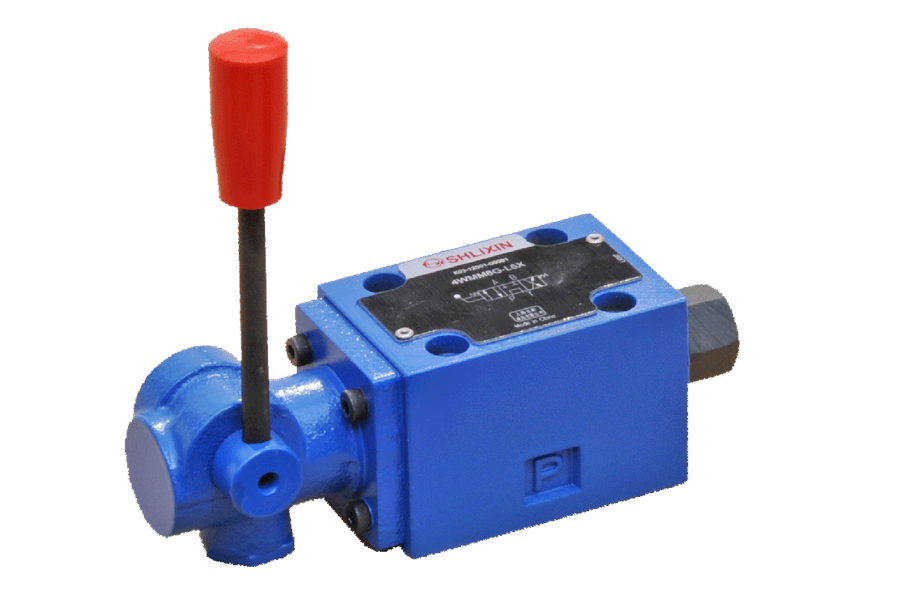

WMM6...L6X Directional valve with mechanical, manual operation

Series of pictures

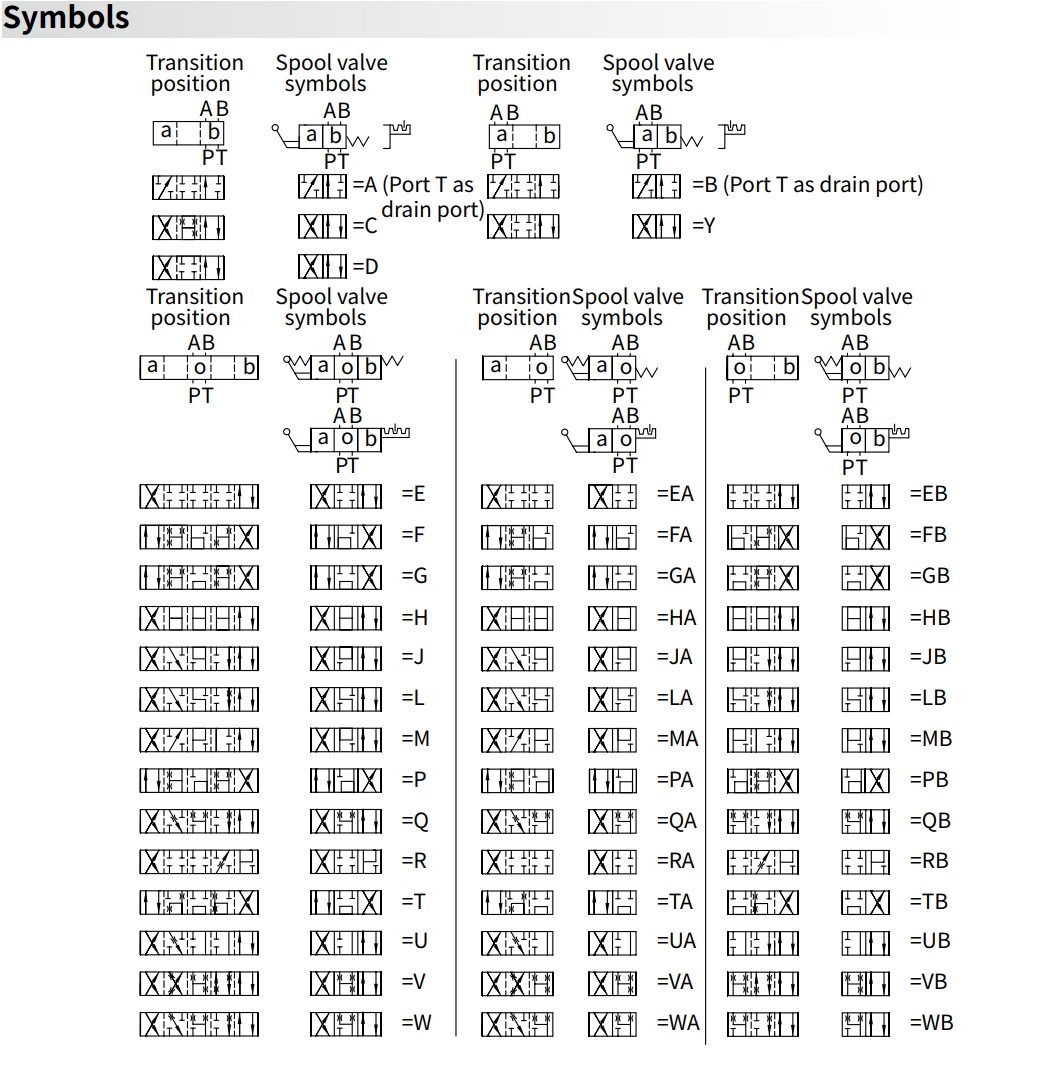

Directional Valves with Mechanical and Manual Operation type WMM6...L6X, are direct operated spool valves which switch the flow fluid by rotating the handle to move the spool axially. They have 2-position, 3-position as well as various spool symbols, optional detent or return spring. And they are sub-plate mounting.

Specification: 6

Pressure: up to 315 bar

Flow: up to 60 L/min

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

Direct acting directional slide valve
Plate mounting
Handle operation
Mounting surface according to DIN 24340 Type A, ISO 4401

Technical specifications

Fluid temperature range		℃	-30 to +80 (NBR seals)
Fluid temperature range		℃	-20 to +80 (FKM seals)
Port Max. operating pressure	Port A B P	bar	315
Port Max. operating pressure	Port T	bar	160
Max. flow-rate		L/min	60
Flowarea (switching neutral position)	Q type	mm²	For symbol Q 6% of nominal cross section
Flowarea (switching neutral position)	W type	mm²	For symbol W 3% of nominal cross section
Fluid			Mineral oil; Phosphate ester
Viscosity range		mm²/s	2.8 to 500
Degree of contamination			Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406
Weight		kg	1.6
