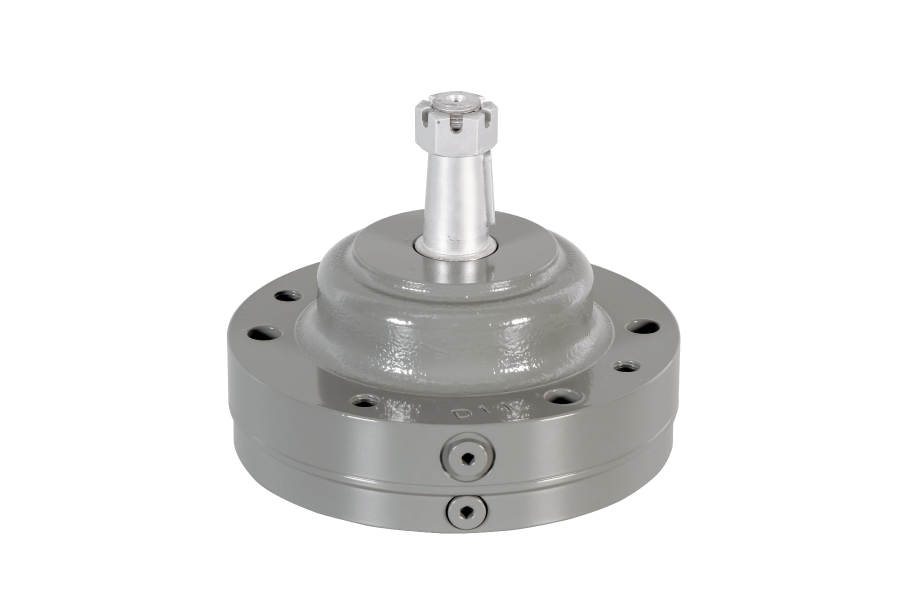

601100
Min.static torque: 475
Maximum speed: 250 rpm
Max.release pressure: 207 bar
Deep groove ball bearings provide higher shaft loads and guaranteed shaft seal service life
It adopts special friction material and high-strength spring design, which has a long service life and high braking reliability
To further extend service life and reduce noise, all core components work under immersion in oil
Two release ports and fill ports are available
The release port has a built-in throttle valve, and the braking is more stable
| Type | HBA475 |
| Min. static torque (Nm) | 475 |
| Brake release pressure (bar) | 20 |
| Max.release pressure (bar) | 207 |
| Min. amount of brake release oil cm3 | 9 |
| Max. speed(rpm) | 250 |
| Volume of lubricating oil in brake cavity cm3 | 50 |
| Max. working oil temperature ℃ | 82 |
| Weight (kg) | 10.4 |
