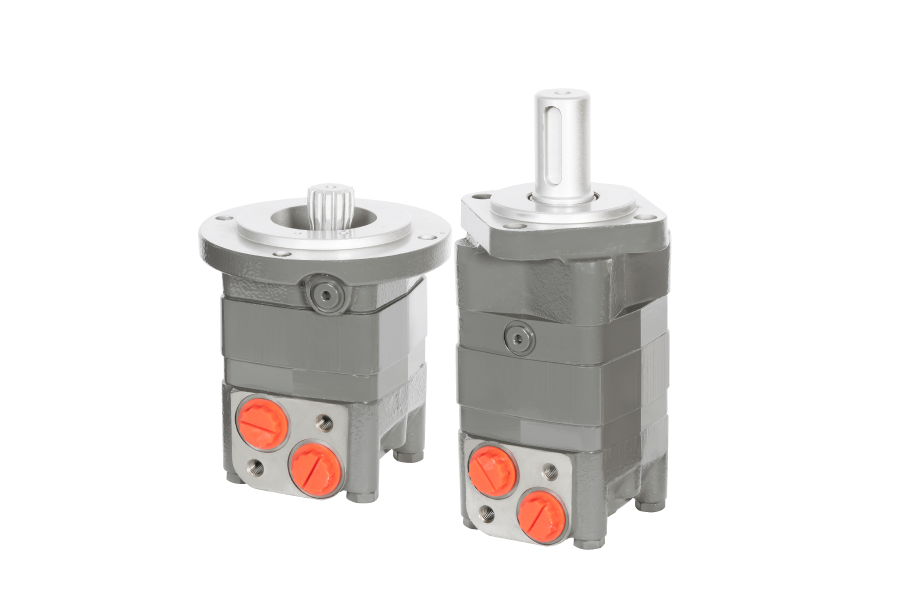

HSD Series Orbital Hydraulic Motor

Series of pictures

The HSD series orbital hydraulic motor, it is a low-speed and high-torque hydraulic motor, the end face distribution makes it to have characteristics of high working pressure, low starting pressure, high efficiency and high reliability.

Displacement: 80-500 cc/rev
Max.differential pressure: 120-210 bar

Configure model/order number

***********
Copy to clipboard
Configured parameter:******
Open All | Close All

Serial Advantage

Technical Specification

Type80100125160200230250315400500
Displacement   (cm3/rev.)80.299.6124.9159.2199.4232.1249.3314.0391.9488.3
Max.speed   (rpm)Continuous773739592465372318298236188153
Intermittent982892714562447385359284229187
Max.torque   (Nm)Continuous241297370473610658608874897847
Intermittent3163904855807278128559871056986
Max.output   (kW)Continuous15.518.018.016.516.513.814.515.011.09
Intermittent19.522.522.523.022.017.218.017.012.510.5
Max.differential   pressure
    (bar)
Continuous210210210210210200200200160120
Intermittent275275275260250250250240190140
Peak295295295280270270270260210160
Max.flow   (L/min)Continuous65757575757575757575
Intermittent80909090909090909090
Max.no-load   starting pressure (bar)1210108888888
Min.starting   torque (Nm)Max.continuous differential   pressure145215283359460530554734796781
Max.Intermittent   differential pressure188281371440557633697858925925
Weight   (kg)Bearingless8.28.48.799.59.910.111.111.611.8
Standard9.910.110.410.711.211.611.812.813.313.5


Application Industry

Be mainly used in Rubber and Plastic Processing,Agricultural machinery
