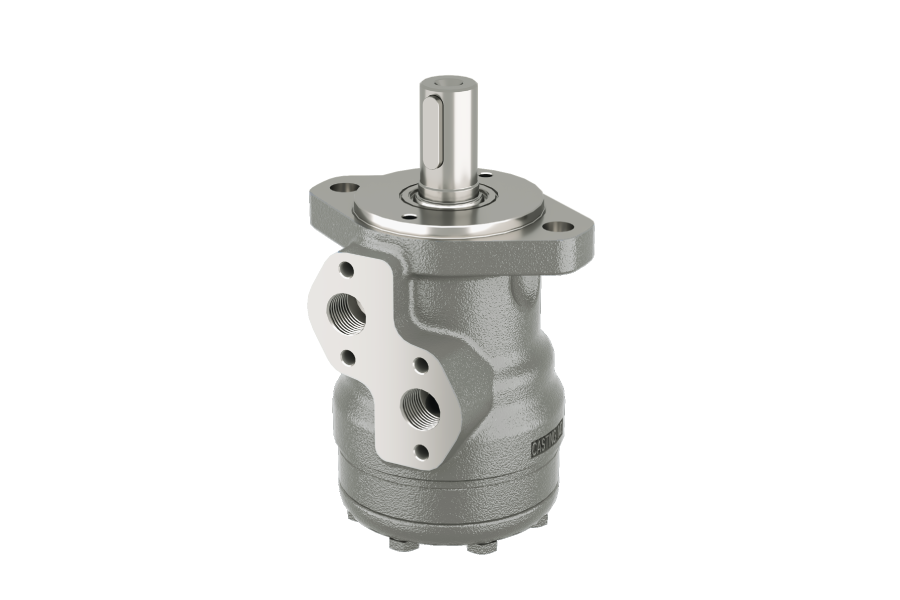

HRD Series Orbital Hydraulic Motor

Series of pictures

HRD Series Orbital Hydraulic Motor,it is a spool distrabution motor,adopts needle tooth ring and star design,low start-up pressure,high efficiency and high reliability.

Displacement: 50-375 cc/rev
Max.differential pressure: 80-200 bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get CAD

Open All | Close All

Serial Advantage

• It adopts spool distribution structure, small size and light weight.
• The high-pressure shaft seal can carry high back pressure and allow series and parallel use.
• It adopts advanced rotary stator parameter design, low starting pressure, high efficiency, and high reliability and smooth operation.
• Reinforced drive link design for long service life.
• Multiple displacements and mounting sizes are available.

Technical Specification

Type		50	80	100	125	160	200	250	315	375
Displacement (cm³/rev.)		51.6	80.3	99.8	124.1	155.4	198.2	248.1	310.1	363.5
Max.speed (rpm)	Continuous	748	743	598	473	380	302	239	192	164
Max.speed (rpm)	Intermittent	942	921	739	595	476	374	302	240	206
Max.torque (Nm)	Continuous	111	226	273	338	382	399	411	417	389
Max.torque (Nm)	Intermittent	129	252	303	370	431	498	545	556	523
Max.output (kW)	Continuous	7.0	14.0	14.0	14.0	12.6	10.5	8.8	7.0	5.6
Max.output (kW)	Intermittent	8.8	15.8	17.5	17.5	15.8	13.1	10.5	8.9	7.8
Max. differential pressure (bar)	Continuous	150	200	200	200	180	150	125	100	80
Max. differential pressure (bar)	Intermittent	175	225	225	225	215	195	170	140	115
Max.flow (L/min)	Continuous	40	60	60	60	60	60	60	60	60
Max.flow (L/min)	Intermittent	50	75	75	75	75	75	75	75	75
Max.no-load starting pressure (bar)		10	10	10	10	10	10	7	7	7
Min.starting torque (Nm)	Max.continuous differential pressure	107	162	267	288	308	354	381	408	366
Min.starting torque (Nm)	Max.Intermittent differential pressure	124	189	298	319	371	456	500	537	504
Weight (kg)		7.1	7.3	7.7	7.9	8	8.5	8.9	9.3	9.7

Application Industry

Be mainly used in Agricultural machinery,Material Handling,Construction Machinery
