Home Products Hydraulic Motors Orbital Motors HBP Orbital hydraulic motor

Please configure the following parameters

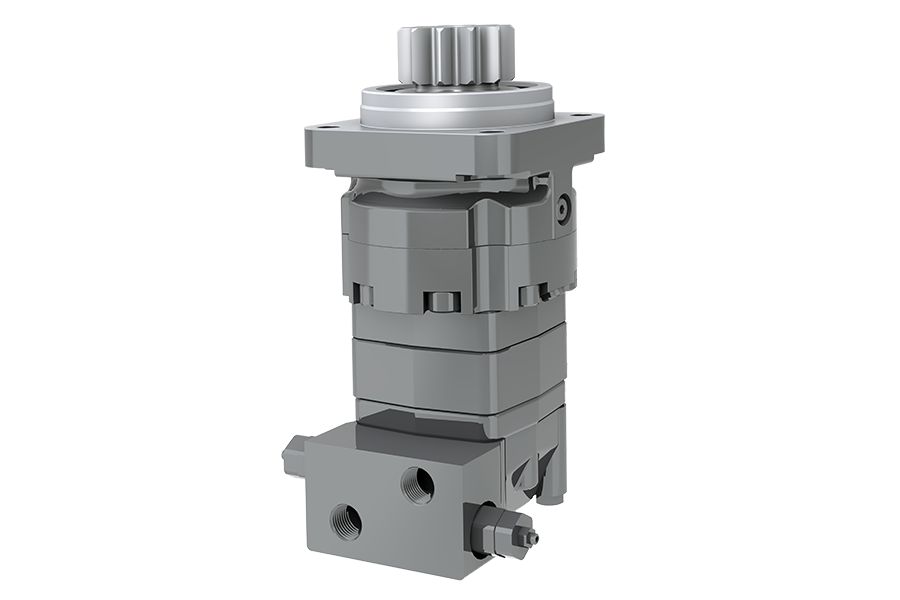

HBP Orbital hydraulic motor

Series of pictures

HBP swing series orbital hydraulic motor is a disc-valve cycloid hydraulic motor with an integrated brake, which achieves high volumetric efficiency at high pressures and is characterised by high starting efficiency, low leakage, and good stability at low speeds.

Displacement: 160~250 cc/rev

Max.differential pressure: 104~207 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

Variety of pinion shafts are available.
Bigger bearing and longer distance between two bearings for high side load capability.
Lower leakage and high starting torque.
Patented axial clearance adjustment design to improve the wearing of drive for high reliability .

Technical specifications

Type	160	200	250
Displacement(cm3/rev.)	159.2	199.4	249.3
Max.torque(N·m)	372	482	523
Max.differential pressure (bar)	147	152	132
Max.speed(rpm)	80	80	80
Mechanical brake torque(N·m)	440 (Min.release pressure: 20bar, Max.release pressure: 40bar)
Weight(kg)	21	21.5	22
