Specification:80~250 cc/rev
Rated pressure:324 bar
Peak pressure:392 bar

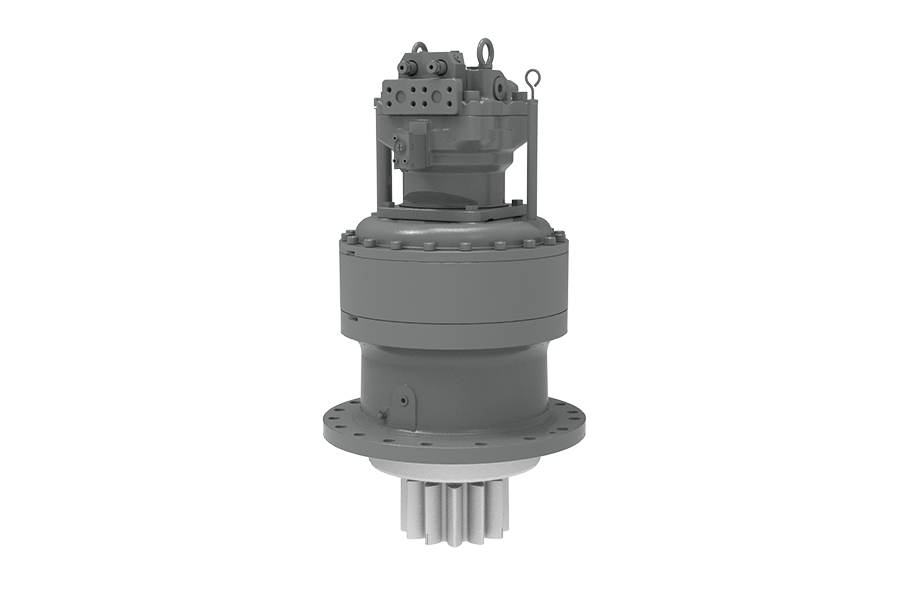

• Swashplate type piston motor, integrated with mechanical brake, relief valve, charge valve and anti-reaction valve
• Compact structure design with the motor's rotating group, integral mechanical brake element and the attached valve options are neatly packaged together.
• Special design of the mounting flange, can be directly connected with the reducer.
• Structure is improved of light weight and compact based on the mature technology, increased the output power.
• Applied in the rotation condition of excavators and drilling rigs, etc.
| Motor | Feature | 45 | 80 | 130 | 180 | 250 | ||
| Normal displacement (cc/rev) | 44.1 | 79.9 | 129.2 | 180.1 | 250.1 | |||
| Direction of rotation | Clockwise, Counter clockwise | |||||||
| Max rotation speed (rpm) | 1750 | 2200 | 1850 | 1680 | 1520 | |||
| Max service pressure (bar) | 240 | 324 | 324 | 324 | 324 | |||
| Torque | Rated output torque (N·m) | 168.5 | 410 | 670 | 930 | 1290 | ||
| Max. brake torque (N·m) | 178 | 475 | 874 | 1210 | 1770 | |||
| Barking Pilot Pressure | Min (bar) | 15 | 22 | 34 | 34 | 34 | ||
| Max (bar) | 49 | 49 | 49 | 49 | 49 | |||
| Casting pressure | Rated (bar) | 1 | 2 | 2 | 2 | 2 | ||
| Max (bar) | 3 | 6 | 6 | 6 | 6 | |||
| Reducer | Reducer type | RGSS35A | RGSL06E | RGSL12E | RGSL16E | RGSL23E | RGSL27E | |
| Reduction ratio | 20.615 | 20.01 | 20.01 | 20.01 | 25.2 | 25.2 | ||
| Weight (Kg) | 82 | 120 | 225 | 310 | 420 | 600 | ||
| Oil viscosity (mm2/s) | 7~1600, Best range：12~80 | |||||||
| Oil Temperature (℃ ) | -40~100, Best range：60~85 | |||||||
| Oil Cleanliness | ISO 4406 20/18/15 | |||||||
