Hengli could provide you:
• Lifting Cylinder
• Bolt Cylinder
Can be customized according to customer requirements.

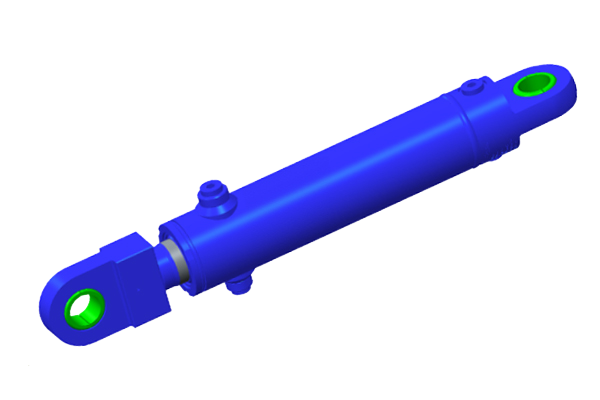

Features: Insert and pull out the cylindrical pin on the ring beam to realize the locking of the ring beam
Specification:
Bore diameter: up to 100mm
Rod diameter: up to 60mm
Pressure：up to32Mpa
Sensor: It can be equipped with a built-in displacement sensor device to reduce the installation size of the hydraulic cylinders

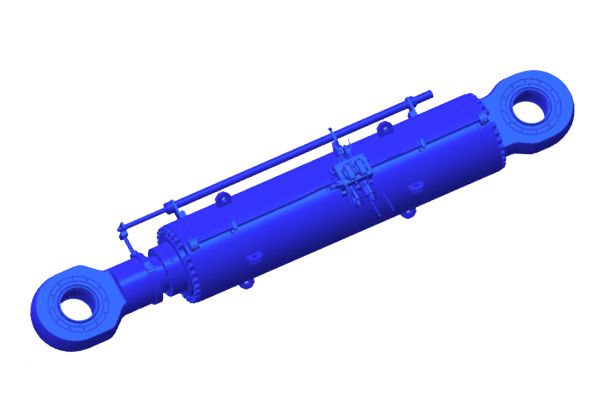

Features: Realize the lifting and lowering of the platform by driving the ring beam
Specification:
Bore diameter: up to 700mm
Rod diameter: up to 420mm
Stroke up to 2150mm
Pressure：up to 32Mpa
Sensor: An external displacement sensor can be configured to meet the needs of maintenance and replacement of the sensor without disassembling the cylinders
• Provide various customized services
• The piston rod uses sprayed ceramic (plasma spray) protective measures, and the neutral salt spray time is ≥4200h, level 9.5
• The excellent sealing configuration scheme strictly controls the internal leakage of the hydraulic cylinders to ensure the "zero leakage" of the hydraulic cylinders during the platform operation cycle
• Can provide various third-party inspection and certification services
