Hengli could provide you:

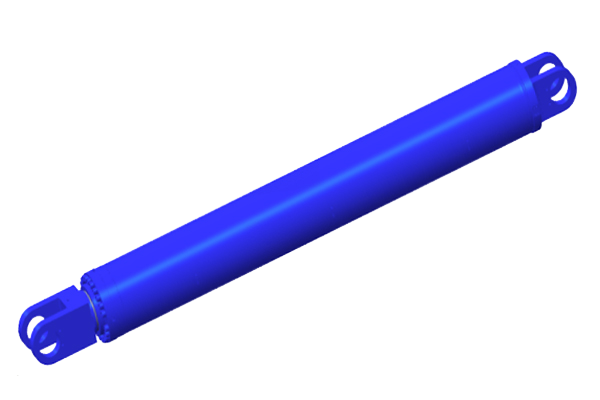

• Main Boom Luffing Cylinder

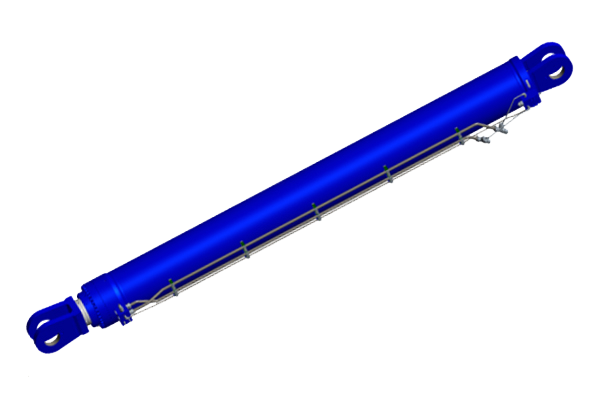

• Folding Arm Tilt Cylinder

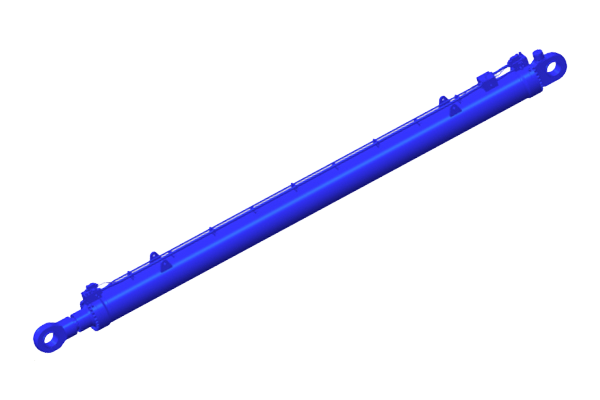

• A Type Mast Crane Luffing Cylinder
Can be customized according to customer requirements.
Features: Provide thrust force and pulling force; used for the horizontal angle of A frame crane
Specification:
Bore diameter: up to 450mm
Rod diameter: up to 220mm
Stroke up to 8160mm
Thrust force: Maximum 3026KN
(Cylinders diameter 450mm/pressure25MPa)
Features: Provide thrust force and pulling force; used to adjust the horizontal angle of the crane's forearm
Specification:
Bore diameter: up to 580mm
Rod diameter: up to 400mm
Stroke up to 5170mm
Thrust force/Pulling force:
Maximum 8454KN/3589KN
(Cylinders diameter 580mm/pressure 32MPa)
Features: Provides thrust force to realize the pitching of the crane boom
Specification:
Bore diameter: up to 580mm
Rod diameter: up to 440mm
Stroke up to 5635mm
Thrust force: Maximum 8454KN
(Cylinders diameter 580mm/pressure 32MPa)
• Compact structure design, materials meet the requirements of third-party inspection organization for impact energy, and low temperature product design can be provided
• Provide a variety of surface anti-corrosion treatment solutions: Ni/Cr electroplating, ceramic spraying, laser cladding, etc.
• It can be designed and matched with integrated counterbalance valve, oil pipe, etc.
• An ice scraper can be added
• The conventional design temperature range is-20℃~+80℃, which can provide higher or lower temperature cylinders by customization service
• Can provide various third-party inspection and certification services
• According to customer needs, a Displacement feedback device can be added to monitor the cylinders stroke in real time
