Hengli could provide you:
• Tilt Cylinder
• Lifting Cylinder
• Steering Cylinder
• Side Shift Cylinder
Can be customized according to customer requirements.

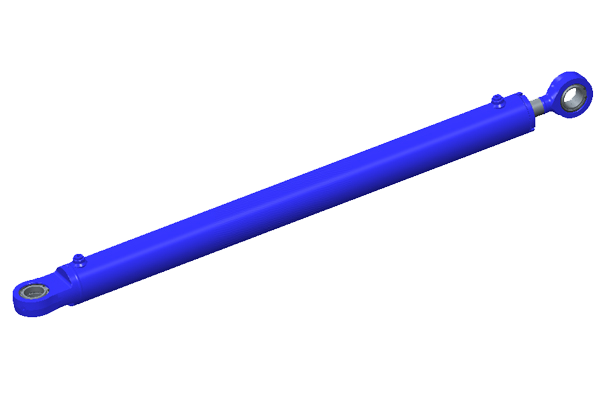

Features: Realize the left and right side shift of the attachment
Specification:
Bore diameter: 80mm～120mm
Rod diameter: 50mm～65mm
Stroke≤1500mm
Pressure: Maximum 25MPa

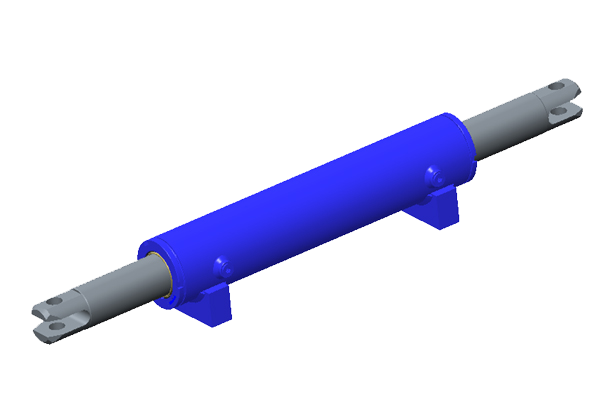

Features: Adjust the tire direction of the stacker
Specification:
Bore diameter: 80mm～200mm
Rod diameter: 60mm～100mm
Stroke≤9500mm
Pressure: Maximum 25MPa

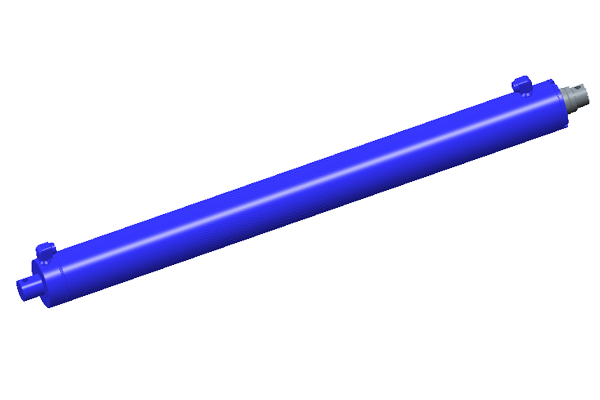

Features: Realize the up and down movement of attachments, the main driving force for lifting
Specification:
Bore diameter: 85mm～220mm
Rod diameter: 66mm～180mm
Stroke≤9500mm
Pressure: Maximum 25MPa

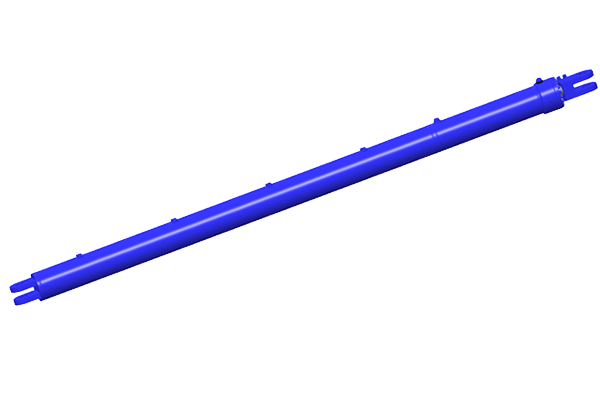

Features: Realize the front and rear pitching action of the mast
Specification:
Bore diameter: 100mm～220mm
Rod diameter: 60mm～140mm
Stroke≤1000mm
Pressure: Maximum 30MPa
• The use of high-strength materials special heat treatment and welding processes ensure that the cylinder has a very high fatigue life under high pressure and heavy load.
• Part of the cylinders are specifically designed to meet the harsh environmental conditions of the stacker and reclaimer
• Design a reliable sealing configuration for stackers and reclaimers for different types of cylinders
• It can be designed and integrated with P.O. check valves, counterbalance valves, etc. according to requirements
• The design has a wide range of temperature resistance (-30℃～+80℃), and can provide higher or lower temperature cylinders
• Working pressure, size specifications, installation methods, etc. can be customized according to the customer needs
