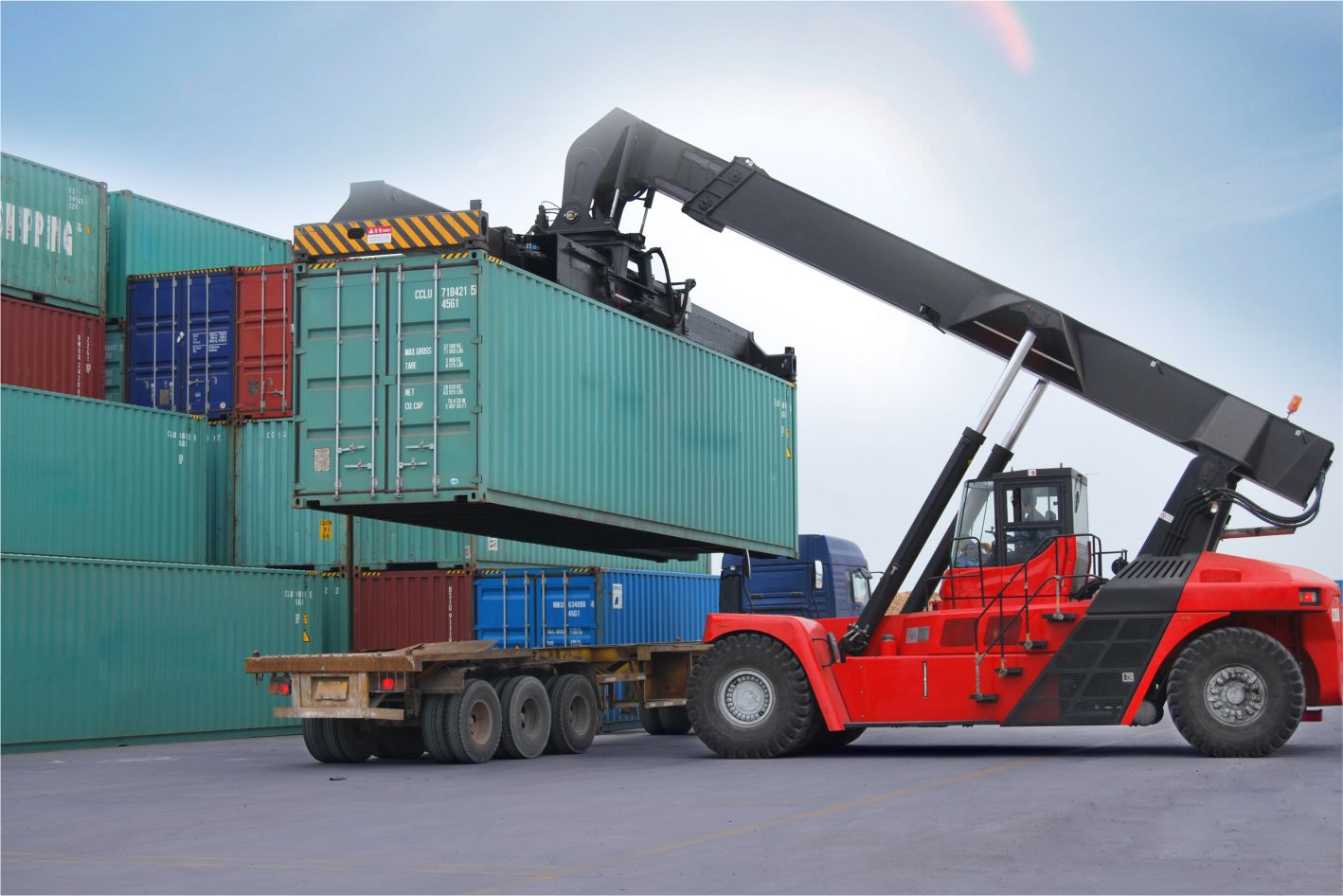

Hengli could provide you:
Hengli could provide you:
• Reach Stacker Telescopic Cylinder
• Reach Stacker Luffing Cylinder
• Steering Cylinder
Can be customized according to customer requirements.

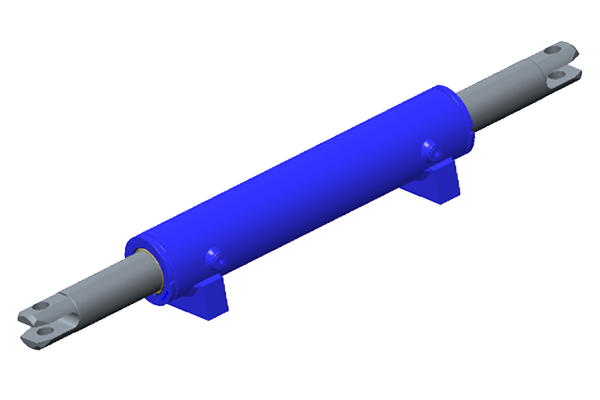

Features: Realize the adjustment of the direction of the crane's tires
Specification:
Bore diameter: 80mm～200mm
Rod diameter: 60mm～100mm
Stroke≤9500mm
Pressure: Maximum 25MPa
Features: Realize the up and down tilting of the boom
Specification:
Bore diameter: 100mm～220mm
Rod diameter: 60mm～140mm
Stroke≤5000mm
Pressure: Maximum 30MPa

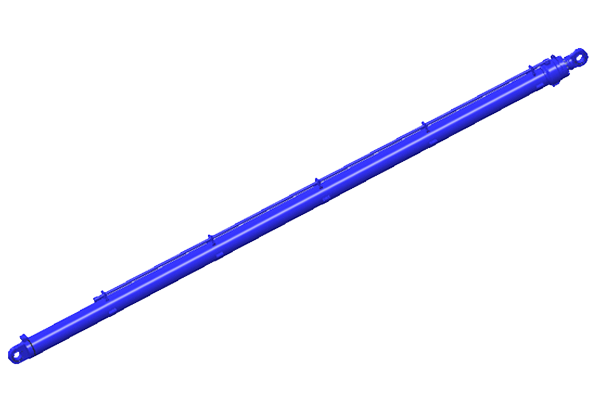

Features: Realize the linear telescopic movement of the boom
Specification:
Bore diameter: 200mm～220mm
Rod diameter: 150mm～180mm
Stroke≤8000mm
Pressure: Maximum 30MPa
• The compact structure design and the use of high-strength materials ensure the extremely light weight of the cylinder
• The theoretical analysis and FEA calculation of the system ensure that the oil cylinder has a very high service life under heavy load
• Provide a variety of surface anti-corrosion treatment solutions: Ni/Cr plating, ceramic spraying, laser cladding, QPQ, etc.
• It can be designed and integrated according to requirements, including P.O. check valves, load holding valves, sequence valves, relief valves, pressure measuring joints, etc.
• The design has a wide range of temperature resistance (-40℃～+100℃), and can provide higher or lower temperature cylinders
• Mature sealing system ensures that the cylinder has no jitter or crawling problems at low speeds
• The guide sleeve adopts a special anti-corrosion technology to ensure that the cylinder will work at a long time without rusting the guide sleeve
