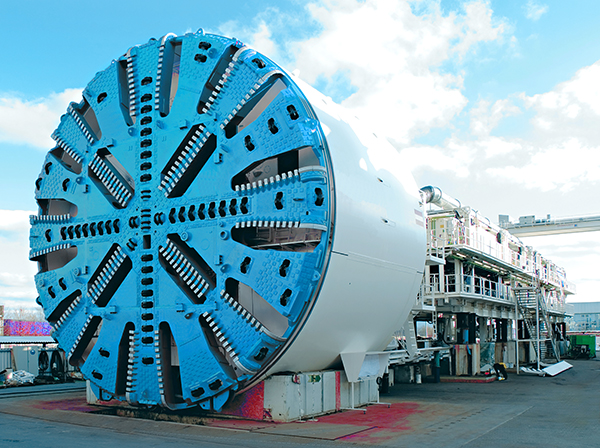

For shield tunneling machines with a diameter of 2.5-17.45 meters or more, Hengli could provide you:
• Thrust Cylinder
• Articulated Cylinder
• Assembly Lifting Cylinder
• Anti-torque Cylinder
• Crusher Cylinder
Can be customized according to customer requirements.
Features: Clamp the crushing tongs to ensure that large pieces of gravel are crushed before they enter the discharge port
Specification: Various specifications of crusher cylinders can be designed and produced according to customer requirements
Features: Transmit the torque when the cutter head rotates
Specification:
Bore diameter: 330mm～570mm
Rod diameter: 260mm～530mm
Stroke120mm～160mm
Pressure：
Generally up to 35Mpa
Maximum up to42MPa
Features: Transport the segments to the designated position and assemble them into a ring
Specification:
Generally two-level structure
Thrust and pull are provided by the internal small oil cylinder
Small piston rod fixed
Large piston rod can withstand large lateral forces when telescoping
Features:
Active articulation: cutter head steering/coordinated tool change
Passive articulation: drag the tail of the shield forward
Specification:
Bore diameter: 125mm～550mm
Rod diameter: 70mm～370mm
Stroke140mm～1200mm
Pressure: up to 35MPa
Features: Move the shield machine forward
Specification:
Bore diameter: 140mm～550mm
Rod diameter: 120mm～420mm
Stroke: 900mm～4100mm
Pressure:
up to 35Mpa
Special requirements can reach up to 45Mpa
• The use of high-strength materials, special heat treatment and welding processes ensure that the cylinder has a very high fatigue life under high pressure and heavy load.
• Design a reliable sealing configuration suitable for the working conditions of the shield machine for different types of oil cylinders
• The design has a wide range of temperature resistance (-20℃～+80℃), and can provide higher or lower temperature cylinders
• The theoretical analysis and FEA calculation of the system can make the design of the cylinder structure more optimized and safer
• Working pressure, size specifications, installation methods, etc. can be customized according to the customer needs
