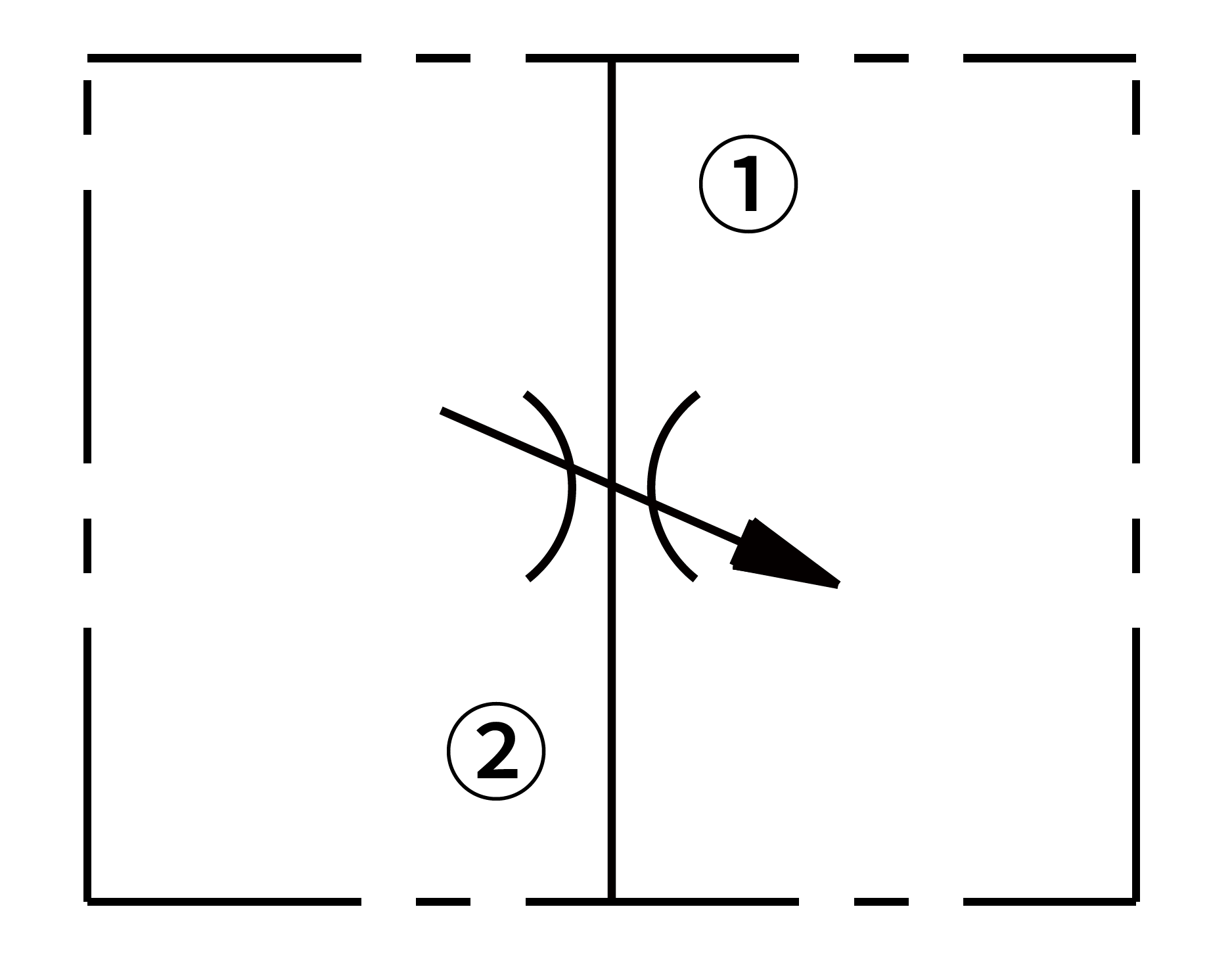

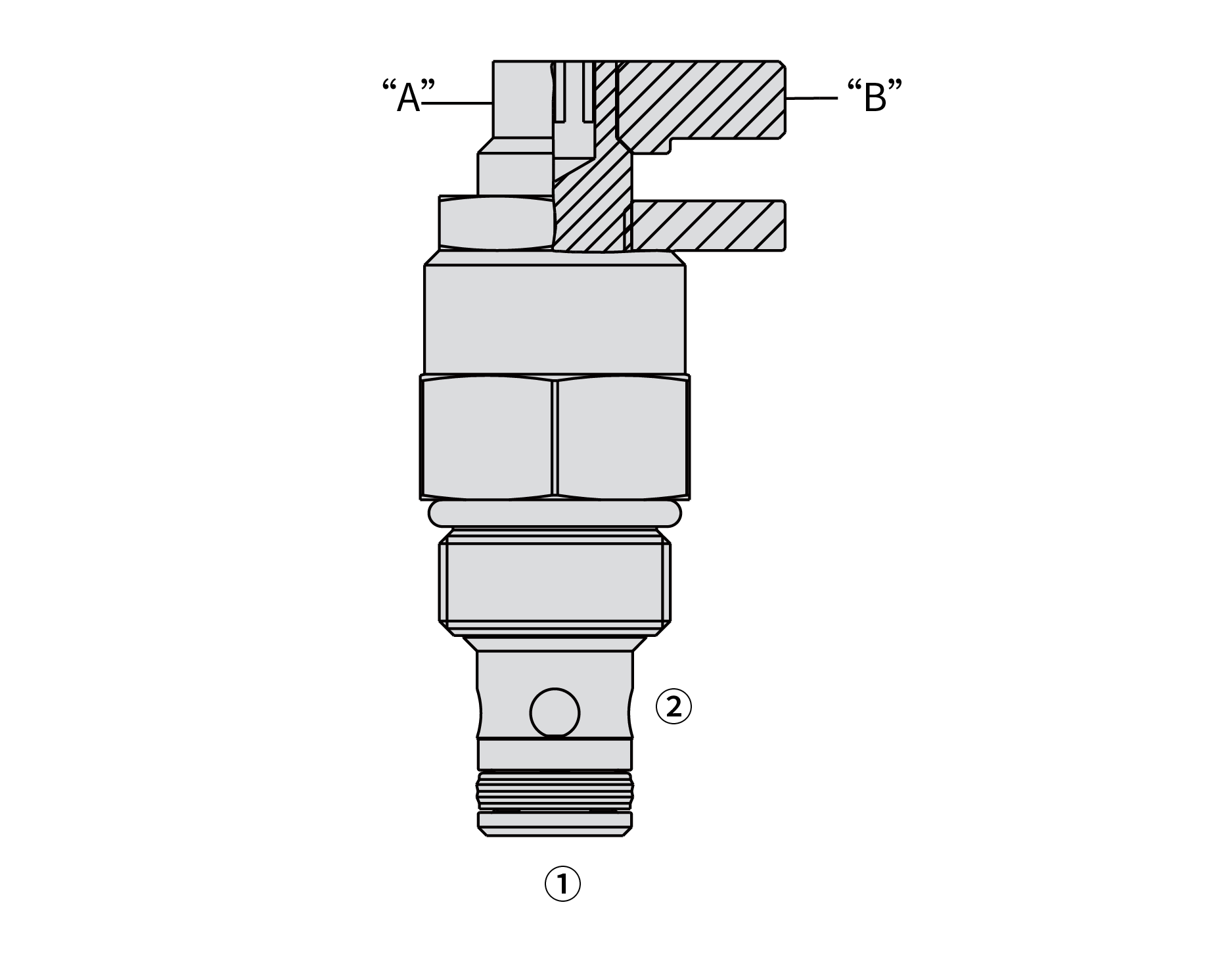

A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve.

Rated pressure：240 bar

Peak flow：42 L/min

Cavity：VC08-2

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

Adjustments cannot be backed out of the valve
Desired settings may be locked down
Hardened parts for long life
Industry common cavity ·Aluminum knob option ·Positive shut-off ·Linear adjustment

Rated pressure	240 bar (3500 psi)
Peak flow	42 L/min (11 gpm) nominal at 7 bar at full open 3.5 turns
Internal leakage	≤ 0.25 mL/min (5 drop/min) at shut-off
Adjustment torque required	0.56 Nm at 7 bar ; 5.41Nm at 207 bar
Cavity	VC08-2 (See technical reference)
Fluid	Mineral-based or synthetics with lubricating properties
Viscosity range	7.4 to 420 mm²/s
Temperature range	-40 to 100 ℃ (Buna N seals)
	-54 to 107 ℃ (Polyurethane seals）
	-26 to 204 ℃ (Fluorocarbon seals)
Degree of fluid contamination	The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life
