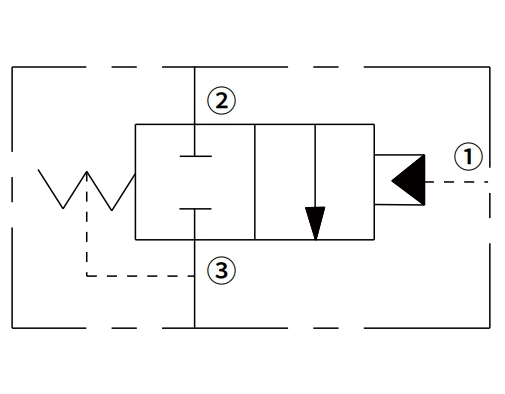

A screw-in, cartridge-style, normally closed, spool-type, hydraulic directional valve for 2-way circuits requiring remote pilot actuation.

Rated pressure (bar / psi) 240 / 3500

Peak flow (L/min / gpm) 37.9 / 10 (See performance chart)

Cavity: VC10-3

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

Rated pressure	240 bar (3500 psi)
Peak flow	See performance chart
Internal leakage	≤ 82 mL/min @ 207bar
Hydraulic control pressure requirements (Spool fully reversed)	Spring 4.1 bar: 4.7 bar
	Spring 7.6 bar: 8.6 bar
	Flow required for complete reversal of spool: 0.65 mL
Cavity	VC10-3 (See technical reference)
Fluid	Mineral-based or synthetics with lubricating properties
Viscosity range	7.4 to 420 mm2/s
Temperature range	-40 to 100 ℃ (Buna N seals)
	-26 to 204 ℃ (Fluorocarbon seals)
	-54 to 107 ℃ (Polyurethane seals）
Degree of fluid contamination	The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life
