HRV0-S08 Relief, Direct-Acting Poppet

Series of pictures

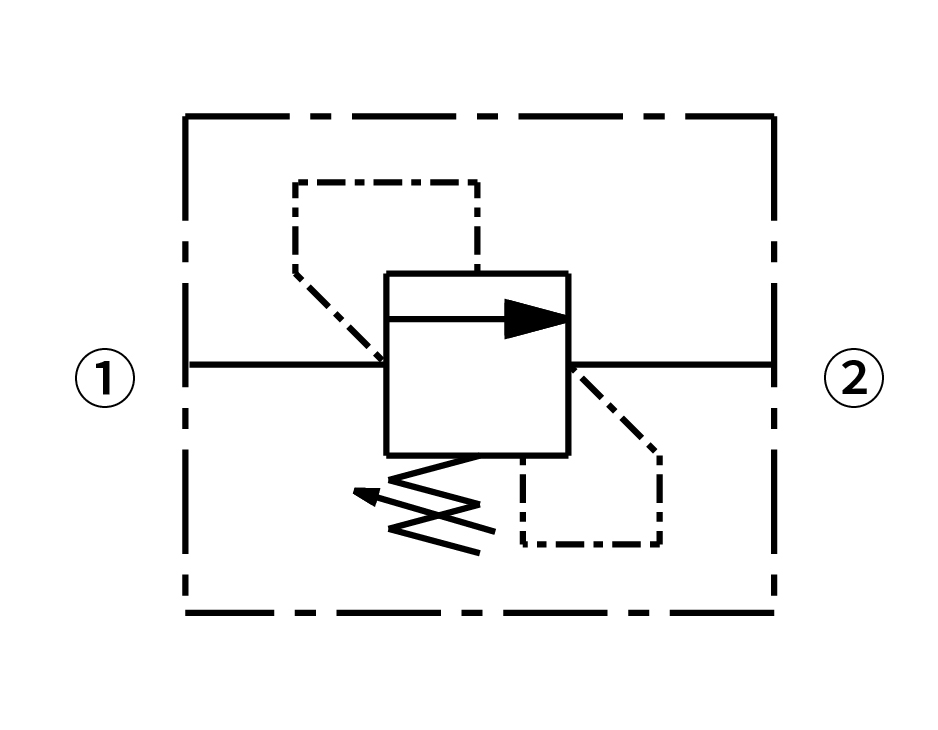

A screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve.

Rated pressure：350 bar

Peak flow：30 L/min

Cavity：VC08-2A

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get CAD

Open All | Close All

Serial Advantage

• Galvanized surface for corrosion protection
• Adjustment device will not rotate out of the valve body
• Industry-standard valve hole
• Hardened parts for longer durability

Technical Specification

Maximum pressure	350 bar（5000 psi）
Peak flow	30 L/min（8 gpm）
Internal leakage	0.25 ml/min @ 80% of pressure setting
Reseat pressure	nominal 90% of crack pressure
Installation torque	40-45 Nm
Cavity	VC08-2A
Fluid	Mineral-based or synthetics with lubricating properties
Fluid temperature range ℃	-40 to 100 ℃
Viscosity range	7.4 to 420 mm²/s
Degree of fluid contamination	The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life
