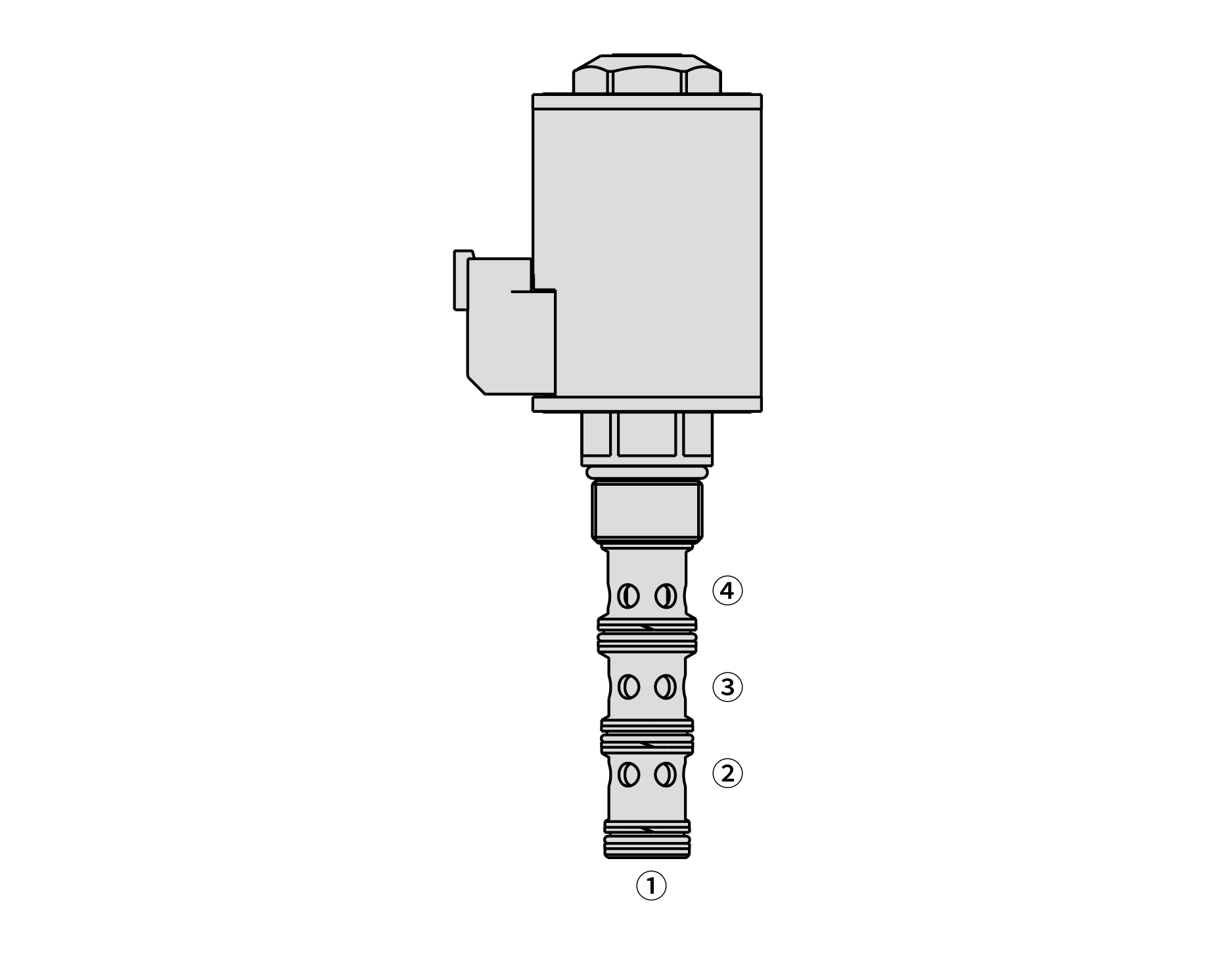

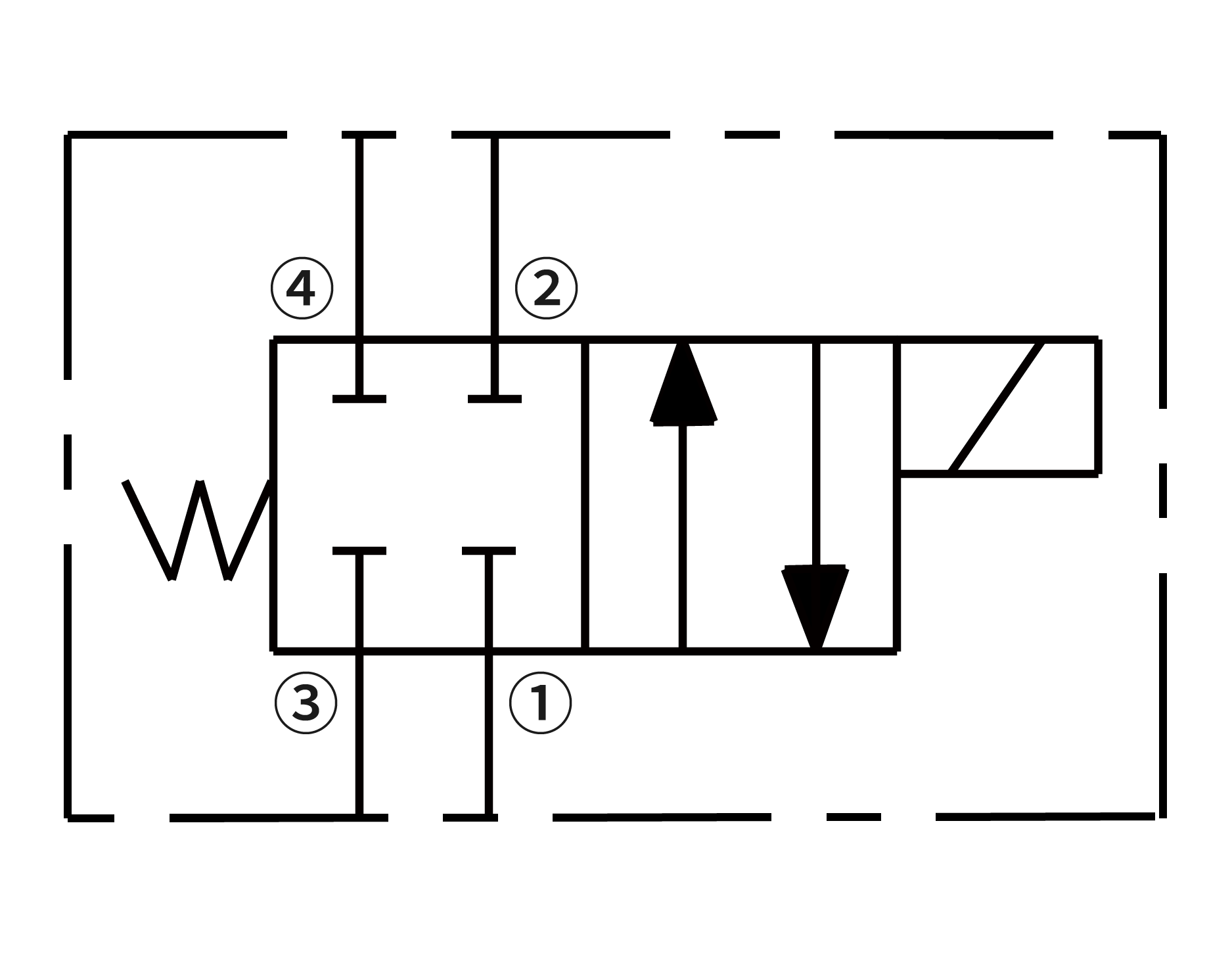

A solenoid-operated, 2-position, four-way, direct-acting spool-type,screw-in hydraulic cartridge valve, intended as a bidirectional blocking valve

Rated pressure ：240 bar

Peak flow：56.8 L/min

Cavity：VC12-4

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

Rated pressure		240 bar (3500 psi)
Peak flow		See performance chart
Internal leakage		≤ 410 ml/min@240 bar
Coil duty rating		See performance chart
Response time (When the voltage is 100% and the flow is 80% of the rated value)		Pull-In:100 msec; Drop-Out: 100 msec
Initial coil current draw at 20℃	E-Coil	1.7 A at 12VDC; 0.85 A at 24VDC
	D-Coil	1.67 A at 12VDC; 0.83 A at 24VDC
Minimum pull-in voltage		85% of nominal at 207 bar
Cavity		VC12-4 (See technical reference)
Fluid		Mineral-based or synthetics with lubricating properties
Viscosity range		7.4 to 420 mm2/s
Temperature range		-40 to 100 ℃ (Buna N seals)
		-26 to 204 ℃ (Fluorocarbon seals)
Degree of fluid contamination		The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life
