Set the following parameters

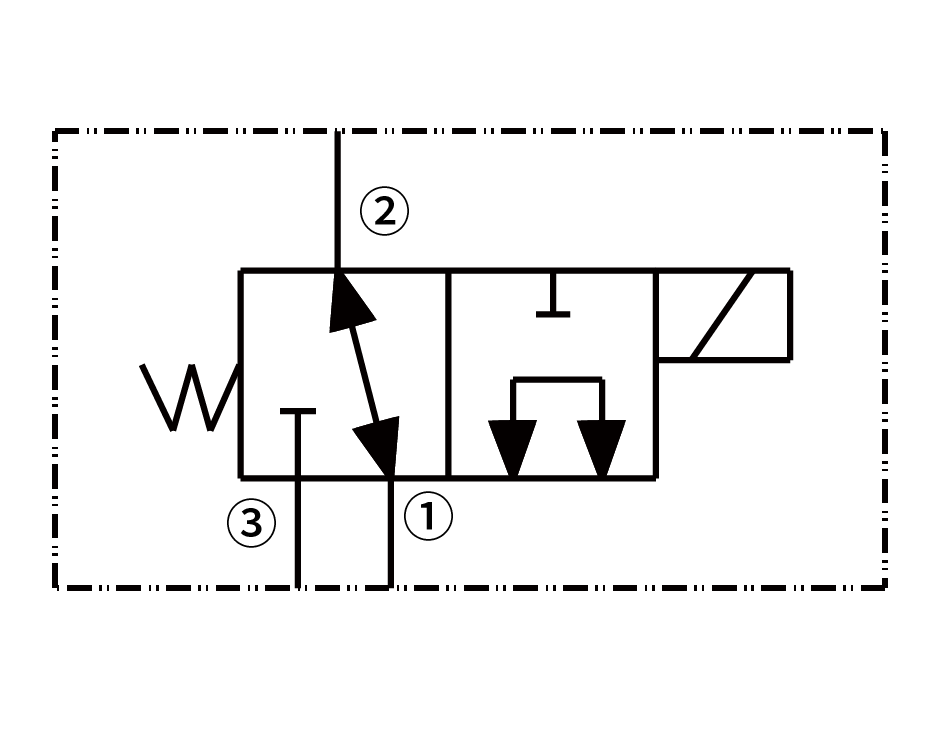

3-way, direct-acting, spool-type.

Rated pressure：207 bar

Peak flow：22.7 L/min

Cavity：VC10-3

***********

Copy to clipboard

Configured parameter：******

Open All | Close All

• Coils rated for continuous duty
• Plug-in voltages interchangeable
• Optional IP69K waterproof E-type coil

Rated pressure		207 bar (3000 psi)
Peak flow		22.7 L/min (6 gpm)
Internal Leakage		≤ 164 mL/min @ 207 bar
Coil Duty Rating		Continuous from 85% to 115% of nominal voltage
Response time		First indication of change of state with 100% voltage supplied at80% of nominal flow rating:Energized: 60 msec. ; De-energized: 10 msec.
Initial Coil Current Draw at 20℃	E-coil	1.7A at 12VDC; 0.85A at 24VDC
	D-coil	1.67A at 12VDC; 0.83A at 24VDC
Minimum pull-in voltage		85% of nominal at 207 bar
Cavity		VC10-3
Fluid		Mineral-based or synthetics with lubricating properties
Viscosity range		7.4 to 420 mm²/s
Temperature range ℃		-54 to 107 ℃ (Polyurethane seals)
		-40 to 100 ℃ (Buna N seals)
		-26 to 204 ℃ (Fluorocarbon seals)
Degree of contamination		The minimum pollution level is ISO4406 level 20/18/14, and level 17/15/13 is recommended to prolong the service life
