VTSA series valve islands

Series of pictures

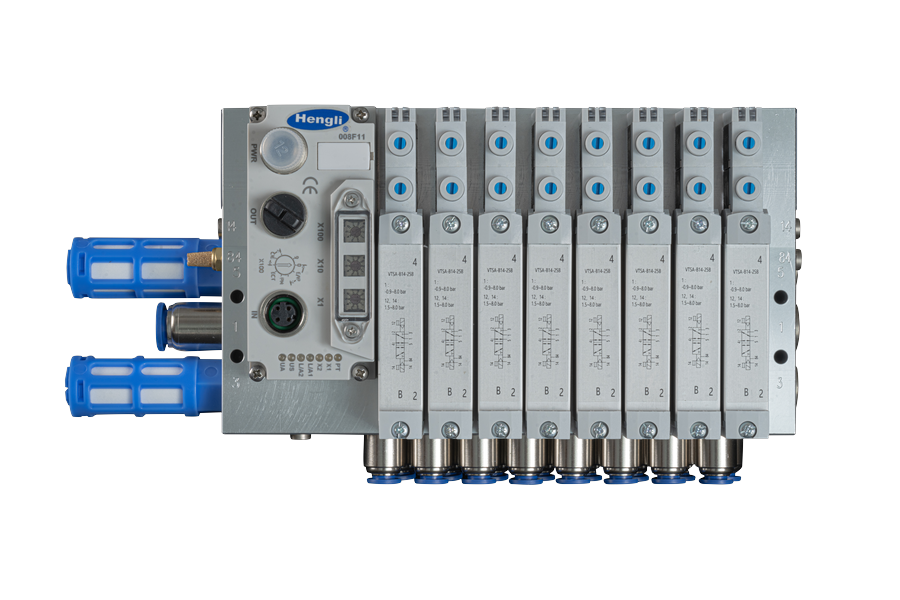

VTSA series valve islands with VTSA plate and half-tube solenoid valves with multi-pin plug interface and fieldbus interface for high level communication.

4 to 24 valve positions are available

Configure model/order number

***********
Copy to clipboard
Configured parameter：******
Add to cart Download Documents Get CAD
Open All | Close All

Serial Advantage

  • The IO-Link interface and Sub-D multi-pin interface are optional.

  • EtherCAT, Profinet, EtherNet/IP, CC-link IEFB and other fieldbus interfaces are available

  • Different electrical connections can be achieved by replacing the electrical control box.

  • IO-Link provides fault diagnosis function.

  • Optional quick connector.

  • Multiple pressure zones can be realized.

  • Through the use of long and short plugs, the internal or external pilot air source is realized in the same air path plate.

  • Manual operation, push-button strap lock

  • Plate and half-pipe valves are available.

  • A plate valve with a working air port at the bottom can be used for control cabinet installation.

  • Reduce assembly and installation time.

  • Easy installation with built-in screws and seals.

  • The connection mode can be easily changed.

  • LED display for quick troubleshooting.
