NG: 10 and 16
Max pressure: 315 bar
Max flow: 125L/min(size 10) 300L/min(size 16)

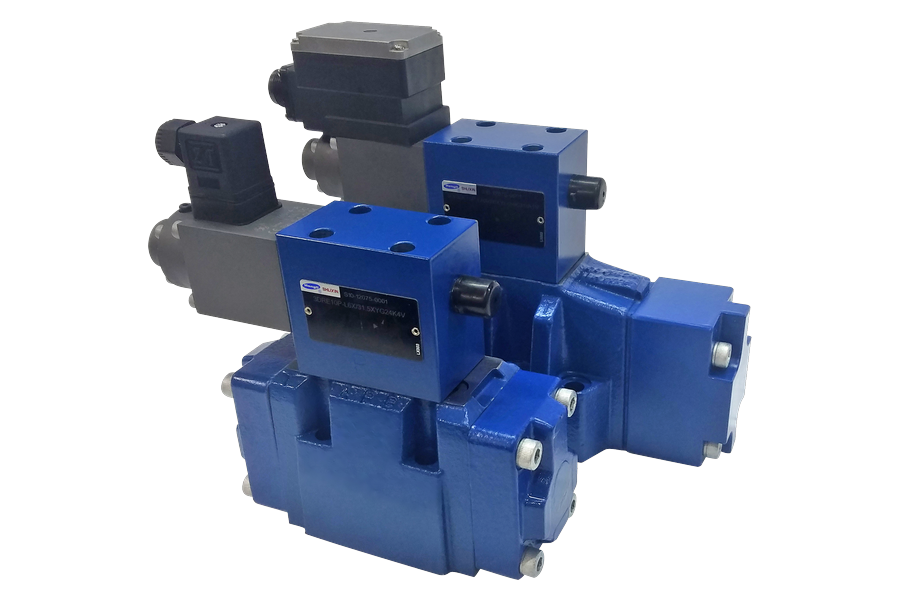

 and 3DRE(M)E三通比例减压阀-彩色.png)
Pilot operated valve for reducing a pressure (P to A) and limiting (A to T) a system pressure
Actuation by proportional solenoid
Maximum pressure relief function, optional
Valve and control electronics from a single source
Control electronics for type 3DRE(M):
- Analogue amplifier type VT-VSPA1(K)-1in Euro-card format
- Digital amplifier type VT-VSPD-1 in Euro-card format
- Analogue amplifier type VT 11131 of modular design
Linear command value/pressure characteristic curve
Integrated electronics (OBE) with type 3DRE(M)E:
- Low manufacturing tolerance of the command value/pressure characteristic curve
- Ramp times can be adjusted separately for pressure build-up
| General | |||||||
| Size | 10 | 16 | |||||
| Weight | 3DRE and 3DREM | kg | 7.7 | 10.2 | |||
| 3DREE and 3DREME | kg | 7.8 | 10.3 | ||||
| Installation orientation | Optional, preferably horizontal | ||||||
| Storage temperature range | ℃ | -20 to +80 | |||||
| Ambient temperature range | 3DRE and 3DREM | ℃ | -20 to +70 | ||||
| 3DREE and 3DREME | ℃ | -20 to +50 | |||||
| Hydraulic ( measured with HLP46；ϑoil =40℃ ±5℃ and p = 100bar ) | |||||||
| Size | 10 | 16 | |||||
| Max. operating pressure | Ports P, A and X | bar | 315 | P and X=315；A=250 | |||
| Port Y | bar | separately and at zero pressure to tank | |||||
| Max. set pressure in channel A | Pressure stage50bar | bar | 50 | 50 | |||
| Pressure stage100bar | bar | 100 | 100 | ||||
| Pressure stage200bar | bar | 200 | 200 | ||||
| Pressure stage250bar | bar | 250 | |||||
| Pressure stage315bar | bar | 315 | |||||
| Min. set pressure channel A at zero command value | see characteristic curves | ||||||
| Maximum pressure relief function (infinitely adjustable) | Pressure stage 50bar | bar | Pressure adjustment range | 30 to 70 | Factor setting | to 70bar | |
| Pressure stage 100bar | bar | 50 to 130 | to 130bar | ||||
| Pressure stage 200bar | bar | 90 to 230 | to 230bar | ||||
| Pressure stage 250bar | bar | 100 to 250 | to 250bar | ||||
| Pressure stage 315 bar ( size 10 only ) | bar | 150 to 350 | to 350bar | ||||
| Max. permissible flow | L/min | 125 | 300 | ||||
| Pilot oil flow | L/min | 1 | |||||
| Hydraulic fluid | Mineral oil ( HL, HLP ) to DIN 51524; further hydraulic fluids on enquiry! | ||||||
| Hydraulic fluid temperature range | ℃ | -20 to +70 | |||||
| Viscosity range | mm2 /s | 20 to 380 | |||||
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9.NAS 1638 or 20/18/15, ISO4406 | ||||||
| Hysteresis % | ±2 of max. set pressure | ||||||
| Repeatability % | < ±2 of max. set pressure | ||||||
| Linearity % | ±3.5 of max. set pressure | ||||||
| Manufacturing tolerance of command value/pressure char. curve, referred to hysteresis curve, increasing pressure | 3DRE and 3DREM % | ±2.5 of max. set pressure | |||||
| 3DREE and 3DREME % | ±1.5 of max. set pressure | ||||||
| Switching time | ms | 100 to 200 (depending on system) | |||||
| Electrical | |||
| Supply voltage | V | 24 V DC | |
| Min. control current | mA | 100 | |
| Max. control current | 3DRE and 3DREM | mA | 1600 |
| 3DREE and 3DREME | mA | 1440 to 1760 | |
| Solenoid coil resistance | Cold value at 20 ° C | Ω | 5.4 |
| Max. hot value | Ω | 7.8 | |
| Duty cycle % | 100 | ||
| Electrical connection | 3DRE and 3DREM | With component plug to DIN EN 175301-803 | |
| Cable socket to DIN EN 175301-803 | |||
| 3DREE and 3DREME | With component plug to E DIN EN 175201-804 | ||
| Cable socket to DIN EN 175201-804 | |||
| Type of protection of the valve to EN 60529 | Ip65 with cable socket mounted and locked | ||
| Control electronics | |||
| Integrated electronics (OBE) with types 3DREE and 3DREME | Integrated in the valve | ||
| External control electronics for types 3DRE and 3DREM | Amplifier in Euro-card format | analogue | VT-VSPA1(K)-1 |
| digital | VT-VSPD-1 | ||
| Amplifier of modular design | analogue | VT 11131 | |
