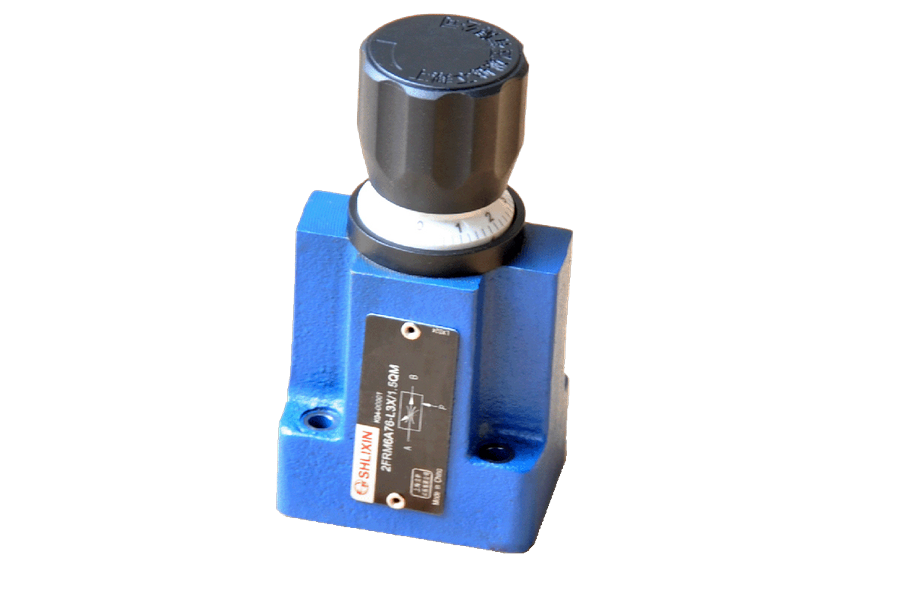

Path: 6
Pressure: up to 315 bar
Flow: up to 32 L/min
For subplates see catalogue
External closing of the pressure compensator, optional
Check valve, optional
Rotary knob with scale, optional lockable
| Max. operating pressure at port A | bar | 315 | |||||||||
| Pressure differential ΔP for free return flow B to A | See characteristic curves | ||||||||||
| Minimum pressure differential | bar | 6 to 14 | |||||||||
| Pressure stability up to P= 315 bar | % | ±2(Qmax) | |||||||||
| Flow -rate | Qmax | L/min | 0.2 | 0.6 | 1.5 | 3 | 6 | 10 | 16 | 25 | 32 |
| Qmin to 100bar | mL/min | 15 | 15 | 15 | 15 | 25 | 50 | 70 | 100 | 250 | |
| Qmin to 315bar | mL/min | 25 | 25 | 25 | 25 | 25 | 50 | 70 | 100 | 250 | |
| Fluid | Mineral oil suit, Phosphoric acid ester | ||||||||||
| Fluid temperature range | ℃ | – 20 to + 80 | |||||||||
| Viscosity range | mm2/s | 10 to 800 | |||||||||
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406 | ||||||||||
| Installation position | Optional | ||||||||||
| Circumstances temperature range | ℃ | -20 to +50 | |||||||||
| Weight | 2FRM6A...2FRM6B... | kg | Approx.1.3 | ||||||||
| 2FRM6SB... | kg | Approx.1.5 | |||||||||
